Product Main

Quick Details

Output: Analog Sensor
Theory: Resistance Sensor
Usage: Pressure Sensor
Brand Name: santwell
material: alloy steel
Model Number: SBG-B
Place of Origin: China (Mainland)

Specifications

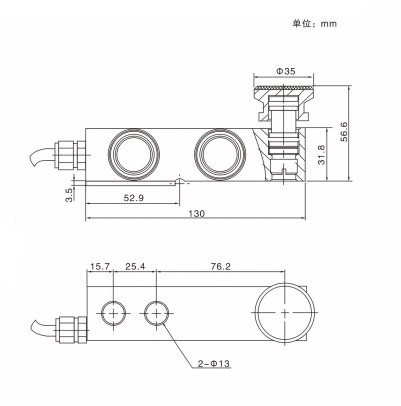

SBGB single ended shear beam load cell can be use in platform scaleforklift

1.Appliation

Can used for motor vehicles, ground weighter, single-truck scales, hopper weighing.

2.

Technical Parameter
Rated Load 0.5t,1t,2t,3t
Sensitivity 2.0000±0.002mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~12V(AC or DC)
Maximum Excitation Voltage 15V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 380±10Ω
Output Impedance 350±5Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect on Load ±0.02%F.S/10℃
Temperature Effect on Zero ±0.02%F.S/10℃
Construction Alloy Steel/Stainless Steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
