Quick Details

Output: Analog Sensor
Theory: Resistance Sensor
Usage: Pressure Sensor
Brand Name: santwell
material: alloy steel
Model Number: SBG-BG
Place of Origin: China (Mainland)

Specifications

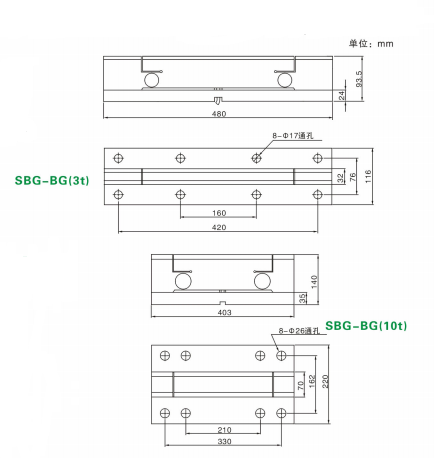

Cantilever sensor SBGBG weight load cells for rail way
1.Appliation

Can be used for dynamic light rail scale, mine orit.

2.

Technical Parameter
Rated Load 3t,10t
Sensitivity 2.0000±0.002mV/V
Total Error ±0.3%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~18V(AC or DC)
Maximum Excitation Voltage 24V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 775±10Ω
Output Impedance 700±5Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect on Load ±0.02%F.S/10℃
Temperature Effect on Zero ±0.02%F.S/10℃
Construction Alloy Steel/Stainless Steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
