| Gender: | Female |
|---|---|
| Type: | MMCX |
| Brand Name: | FUTAI |
| Color: | Brass |
| Model Number: | FT-Connector-019 |
| Place of Origin: | China (Mainland) |
| Material: | Brass |
| Product name: | MMCX Female PCB Connector |
| Plated: | gold plated |
| Sample: | welcome ask sample for testing |
Quick Details
Specifications

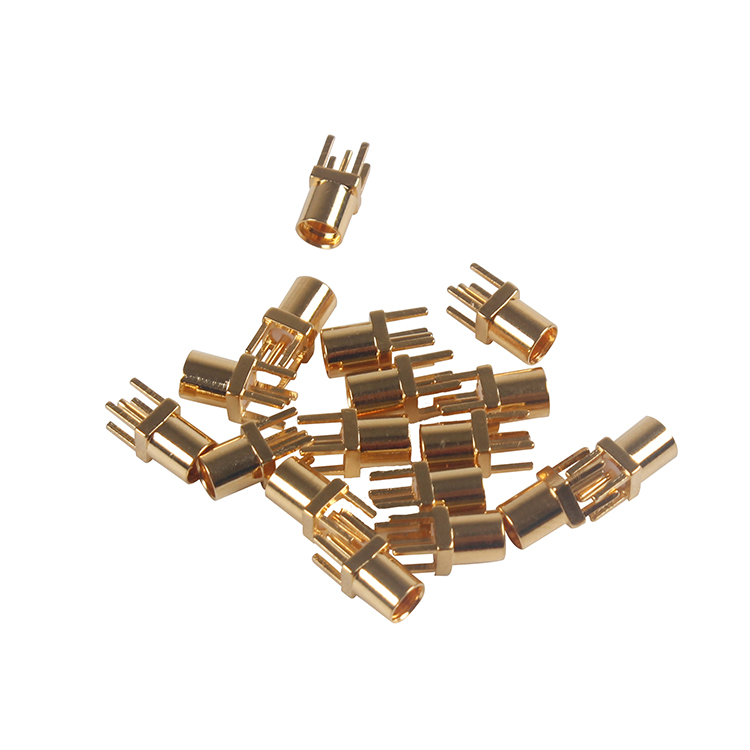

High Quality Gold Plated Brass PTFE Insulator Straight MMCX Female PCB Connector
Specifications:
Model |
FT-Connector-019 | ||
Major Technical Characteristics | |||
Type |
MMCX-KE-019 | ||
Impedance |
50Ω | ||
Frequency Range |
DC~6GHz | ||
Center conductor retention force |
≥0.28 N | ||
Insertion Loss |
0.18dB/1GHz | ||
Disengagement force |
≥6N | ||
Voltage Standing Wave Ratio |
Straight ≤1.25/3GHz | ||
Right angle ≤1.43/3GHz | |||
Durability(mating) |
≥500(cycles) | ||
Cable |
PCB | ||
Material & Plating | |||
Body |
Brass |
Gold plated | |
Inner conductor |
Beryllium or Tin bronze |
Gold plated | |
Resilient contact |
Beryllium-copper |
Gold plated | |
Insulator |
PTFE | ||
Crimp ferrule |
Copper alloy |
Nickel or gold plated | |
O-ring sealing |
6146 silicone rubber | ||
We can provide other materials and plating specifications according to customer's Requirements.
Pictures
about Us
Futai HongKong Co., Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas. Our subsidiary Jinrei Communication co., ltd is located in are three catagories:, RF Connector, Cable Assembly and Antenna.
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC,N, and so on). Cable assemblies are includGaoqiao, Danyang City,Jiangsu.
Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ). Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board. the corporation has passsed ISO9001-2000 certification and ISO14001 in 2004.All of our products and raw materials are in line with the EU ROHS certification.
Our Professional R&D staff develop and research latest designs to meet global market.
Company purpose: Technological Innovation, Pragmatism, Customer Satisfaction.
Quality principal: Continuous Improvement, Become the Best.
We are looking forward to establishing business relations with clients from all over the world. |
