| Special Features: | AUTO FOCUS |
|---|---|
| Technology: | NetWork |
| Sensor: | CMOS |
| Type: | Digital Camera |
| Brand Name: | savgood |
| Model Number: | SG-ZCM2042N |
| Place of Origin: | China (Mainland) |
| resolution: | 2Mp |
| optical zoom: | 42x zoom |
| digital zoom: | 4x zoom |
| starlight: | support |
Quick Details
Specifications
SG-ZCM2042NL

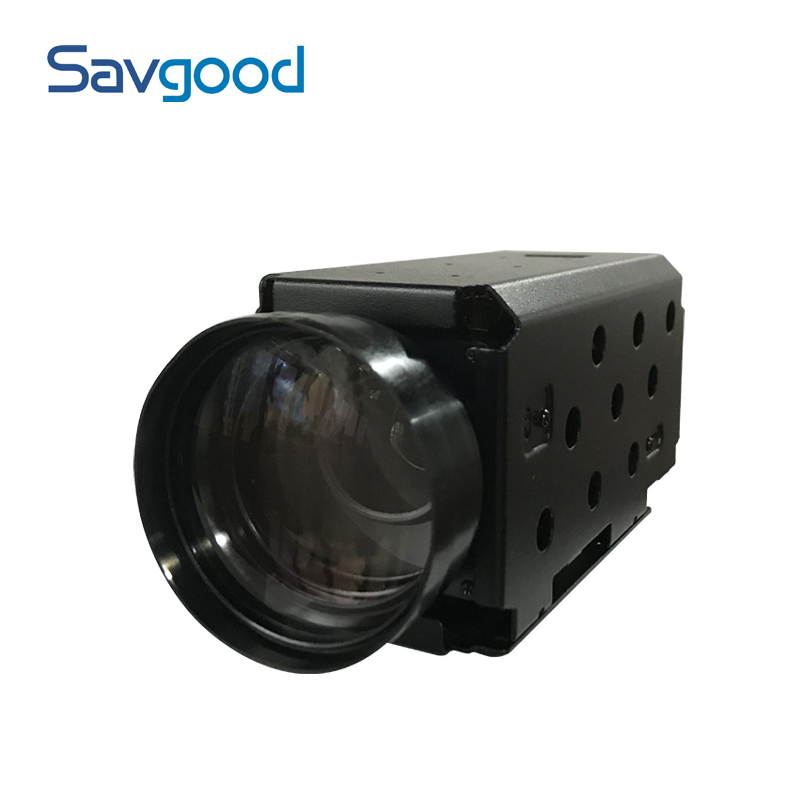

- 2Megapixel 42x Long Range Zoom Starlight Network Camera Module
1. Features
> 1/2.8" Sensor.
> Powerful 42x optical zoom (7mm~300mm).
> Max. 2Mp(1920x1080) Resolution
> Support various IVS Functions
> Support Electronic Defog
2. Specification
Model |
SG-ZCM2042NL | |
Sensor |
Image Sensor |
1/2.8" CMOS |
Effective Pixels |
Approx. 2.13 Megapixel | |
Max. Resolution |
1945 (H)x1225(V) | |
Lens |
Focal Length |
7mm~300mm, 42x Optical Zoom |
Aperture |
F1.6~F6.0 | |
Close Focus Distance |
0.1m~1.5m (WideTale) | |
Angle of View |
42°~1.2° | |
Video Network |
Compression |
H.265/H.264/H.264H/MJPEG |
Storage Capabilities |
TF card, up to 128G | |
Network Protocol |
Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP | |
Smart Alarm |
Motion Detection, Cover Alarm, Storage Full Alarm | |
Resolution |
50Hz: 25fps@2Mp(19201080) 60Hz: 30fps@2Mp(19201080) | |
IVS |
Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. | |
S/N Ratio |
≥55dB (AGC off, Weight on) | |
Minimum Illumination |
Color: 0.005Lux/F1.6; B/W: 0.0005Lux/F1.6 | |
EIS |
Electronic Image Stabilization (ON/off) | |
Defog |
on/off | |
Exposure Compensation |
on/off | |
Strong Light Suppression |
on/off | |
Day/Night |
Auto/Manual | |
Zoom Speed |
Approx 6s(Optical Wide-Tele) | |
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp | |
Electronic Shutter Speed |
Auto Shutter (1/3s~1/30000s)Manual Shutter (1/3s~1/30000s) | |
Exposure |
Auto/Manual | |
2D Noise Reduction |
Support | |
3D Noise Reduction |
Support | |
Flip |
Support | |
External Control |
RS232 | |
Communication Interface |
Compatible with the VISCA Protocol | |
Focus Mode |
Auto/Manual/Semi-automatic | |
Digital Zoom |
4x | |
Operating Conditions |
(-30°C~+60°C/20% to 80%RH) | |
Storage Conditions |
(-40°C~+70°C/20% to 95%RH) | |
Power Supply |
DC 12V±15% (Recommend: 12V) | |
Power Consumption |
Static power: 4.5W, Sports Power: 5.5W | |
Dimensions(L*W*H) |
Approx. 145mm*54mm*64mm | |
Weight |
Approx. 600 | |
