| Special Features: | AUTO FOCUS |
|---|---|
| Technology: | NetWork |
| Sensor: | CMOS |
| Type: | Digital Camera |
| Brand Name: | savgood |
| Style: | |
| Model Number: | SG-ZCM2086N-O |
| Place of Origin: | China (Mainland) |
| resolution: | 2Mp |
| optical zoom: | 86x optical zoom |
| Lens: | 10-860mm |
| starlight: | support |
| Optical defog: | support |
Quick Details
Specifications
SG-ZCM2086N-O

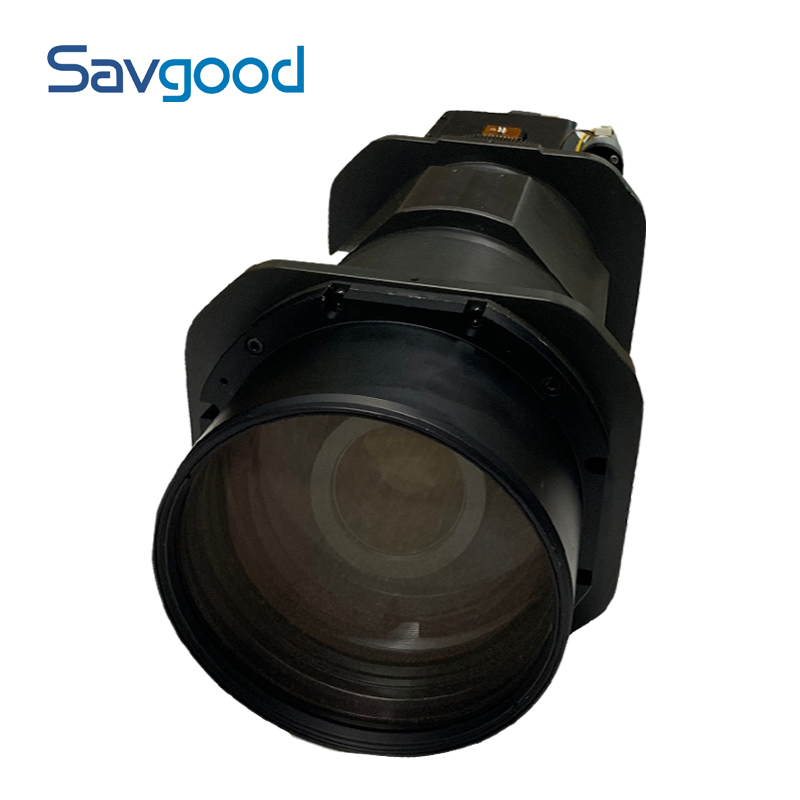

2Megapixel 86x Long Range Zoom Starlight Network Camera Module
1. Features
> 1/1.9" CMOS Sensor.
> Powerful 86x optical zoom (10-860mm).
> Max. 2Mp(1920x1080) Resolution
> Support various IVS Functions
> Support EIS and Optical Defog
> Support video output from the network port.
> Support various OSD
Information overlay
2. Specification
Model |
SG-ZCM2086N-O | |
Sensor |
Image Sensor |
1/1.9" CMOS |
Effective Pixels |
Approx. 2.38 Megapixel | |
Max. Resolution |
1920(H) x 1080(V) | |
Lens |
Focal Length |
10mm860mm, 86x Optical Zoom |
Aperture |
F2.0~F6.8 | |
Close Focus Distance |
5m~10m (WideTale) | |
Angle of View |
42°~0.44° | |
Video Network |
Compression |
H.265/H.264/H.264H/MJPEG |
Storage Capabilities |
TF card, up to 128G | |
Network Protocol |
Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP | |
Resolution |
50Hz: 25/50fps@2Mp(19201080), 25fps@1Mp(1280720) 60Hz: 30/60fps@2Mp(19201080), 30fps@1Mp(1280720) | |
IVS |
Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. | |
S/N Ratio |
≥55dB (AGC off, Weight on) | |
Minimum Illumination |
Color: 0.02Lux/F2.0; B/W: 0.001Lux/F1.4 | |
EIS |
Electronic Image Stabilization (ON/off) | |
Exposure Compensation |
on/off | |
Strong Light Suppression |
on/off | |
Day/Night |
Auto/Manual | |
Zoom Speed |
Approx 6.5s(Optical Wide-Tele) | |
Electronic Defog |
on/off | |
Optical Defog |
Night Mode, 750nm~1100nm Channel is Optical Defog | |
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp | |
Electronic Shutter Speed |
Auto Shutter (1/3s~1/30000s) Manual Shutter (1/3s~1/30000s) | |
Exposure |
Auto/Manual | |
2D Noise Reduction |
Support | |
3D Noise Reduction |
Support | |
Flip |
Support | |
External Control |
RS232 | |
Communication Interface |
Compatible with the VISCA Protocol | |
Focus Mode |
Auto/Manual/Semi-automatic | |
Digital Zoom |
4x | |
Operating Conditions |
(-30°C~+60°C/20% to 80%RH) | |
Storage Conditions |
(-40°C~+70°C/20% to 95%RH) | |
Power Supply |
DC 12V±15% (Recommend: 12V) | |
Power Consumption |
Static power: 6.5W, Sports Power: 8.4W | |
Dimensions(L*W*H) |
Approx. 395mm*145mm*150mm, Lens Diameter is 120mm | |
Weight |
Approx. 5600g | |
