| Gender: | Male |
|---|---|
| Type: | SMA |
| Brand Name: | futai |
| Color: | silver |
| Model Number: | FT-Adapter-SMA-JK-01 |
| Place of Origin: | China (Mainland) |
| Pins: | 1p |
| Insulator: | PTFE |
| Material: | brass |
| Producing: | customize connector according to your drawing or sample |
| Website: | www.futai8.com |
| Sample: | welcome ask sample for testing |
Quick Details
Specifications
Wholesale Adapters High Quality RF Coaxial Adapters
Specifications:
Model |
FT-Adapter-SMA-JK-01 | |
Major Technical Characteristics | ||
Type |
FT-Adapter-SMA-JK-01 | |
Impedance |
50Ω | |
Frequency Range |
DC~12.4 | |
Center conductor retention force |
≥0.28 N | |
Insertion Loss |
≤0.15dB/6GHz | |
Voltage Standing Wave Ratio |
Straight ≤1.10+0.02f | |
Durability(mating) |
≥500(cycles) | |
Material & Plating | ||
Body |
Brass |
Gold plated /nickel plated |
Pin contact |
Brass |
Gold plated |
Resilient contact |
Beryllium-copper |
Gold plated |
Socket contact |
Beryllium-copper Customized) |
Gold plated |
Insulator |
PTFE | |
O-ring sealing |
6146 silicone rubber | |
We can provide other materials and plating specifications according to customer's Requirements.

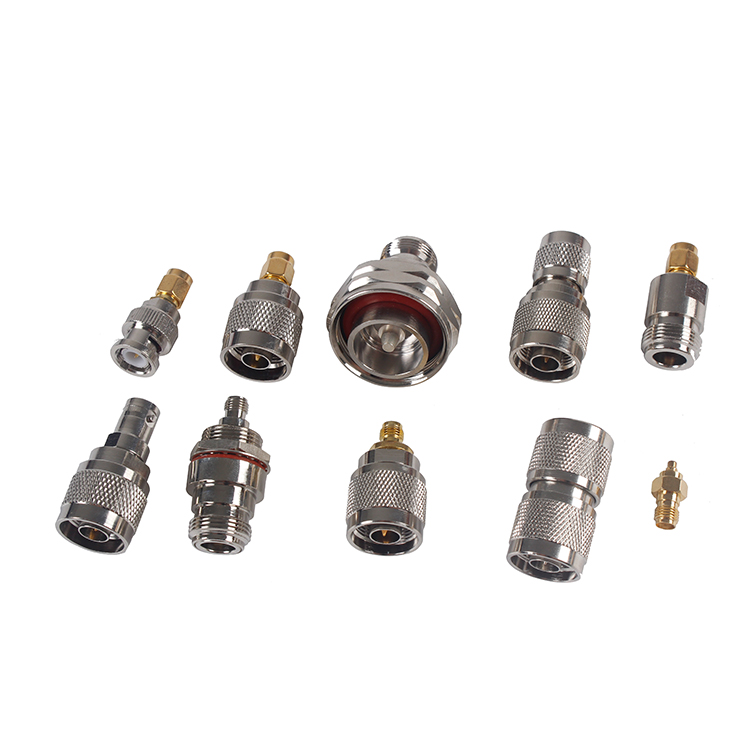

Pictures
