Parameters

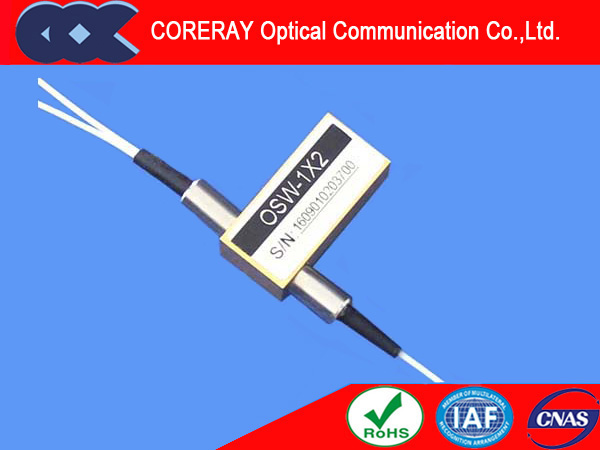

OSW-22BA

Wavelength Range

nm

650~1310

1260~1670

Testing Wavelength

nm

650/780/850/980/1064/1310

1310/1490/1550/1625/1650

Insertion Loss

dB

Typ:1.0,Max:1.2

Typ:0.8,Max:1.0

Return Loss

dB

≥30

≥50

Crosstalk

dB

≥35

≥50

PDL

dB

≤0.05

WDL

dB

≤0.25

TDL

dB

≤0.25

Repeatability

dB

≤±0.02

Power supply

v

3.0 or 5.0

Lifetime

Cycle

≥10⁷

Switch Time

ms

≤8

Transmission Power

mW

≤500

Operation Temperature

℃

-40~+85

Storage Temperature

℃

-40~+85

Weight

g

16

Dimension

mm

(L)55(W)26(H)10.8(±0.2)

A

B

C

D

E

F

G

Mode

Wavelength

Voltage

Control Model

Fiber Diameter

Fiber Length

Connector

SM:9/125um

M5: 50/125um

M6: 62.5/125um

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

3: 3V

5: 5V

L: Latching

N:Non-Latching

25:250um

90:900um

20:2.0mm

05:0.5m

10:1.0m

15:1.5m

OO: None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC
