| Brand Name: | DXR |
|---|---|
| Technique: | Woven |
| Application: | Filters |
| Type: | Weave Wire Mesh |
| Material: | Stainless Steel Wire |
| Model Number: | Stainless Steel Wire Mesh |
| Weave Style: | Dutch Weave |
| Place of Origin: | China (Mainland) |
| mesh type: | stainless steel wire mesh |
| Meterail: | stainless steel wire mesh |
| Technique: | woven |
| Roll size: | 1mx30m, 1.22mx30m, 1.5mx30m |
| Brand Name: | DXR |
| Length: | 30m per roll or as required |
| Color: | Stainless Steel |
| Keyword: | stainless steel wire mesh |
| Features: | Acid-resisting,alkali-resisting etc. |
| Packing: | Put in wooden case |
Quick Details
Specifications
Materials: Materials of Dutch Woven Wire Cloth is divided into Type 302, Type 304, Type 304 L, Type 316 and Type 316 L. Stainless Steel Dutch Woven Wire Cloth offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance. Dutch Woven Wire Cloth in brass, nickel, steel or other metal materials also available at request.
Use: Stainless Steel Dutch Woven Wire Cloth is utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.
Weaving Patterns of Dutch Wire Cloth can be divided Dutch Plain Weaving, Dutch Twill Weaving or Dutch Reverse Weaving.
Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

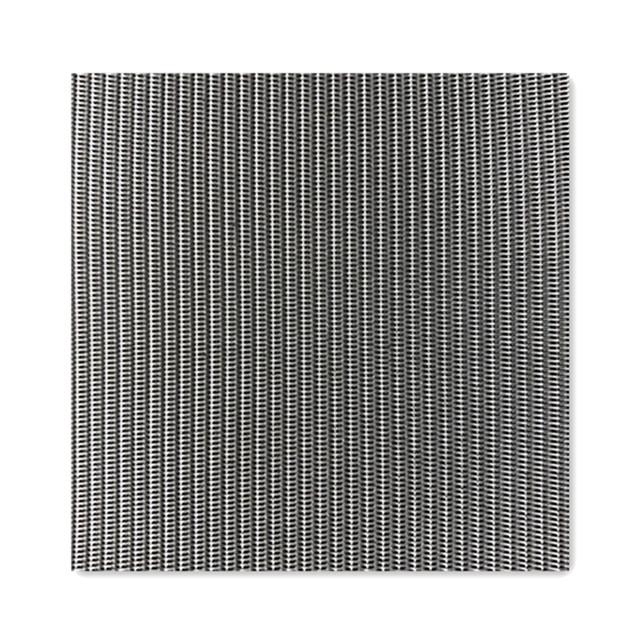

Dutch Reverse Weave: Dutch Reverse Weave is the same as Dutch weave except the warp and weft wires are reversed.
Use: Stainless Steel Dutch Woven Wire Cloth is utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.
Weaving Patterns of Dutch Wire Cloth can be divided Dutch Plain Weaving, Dutch Twill Weaving or Dutch Reverse Weaving.
Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Dutch Reverse Weave: Dutch Reverse Weave is the same as Dutch weave except the warp and weft wires are reversed.
