Warranty: | According to order |
---|---|
Certification: | ISO |
Brand Name: | ZYLAB |
Type: | Electric Heating Element |
Condition: | New |
After-sales Service Provided: | Engineers available to service machinery overseas |
Place of Origin: | China (Mainland) |
Power Source: | Electric |
Quick Details
Specifications

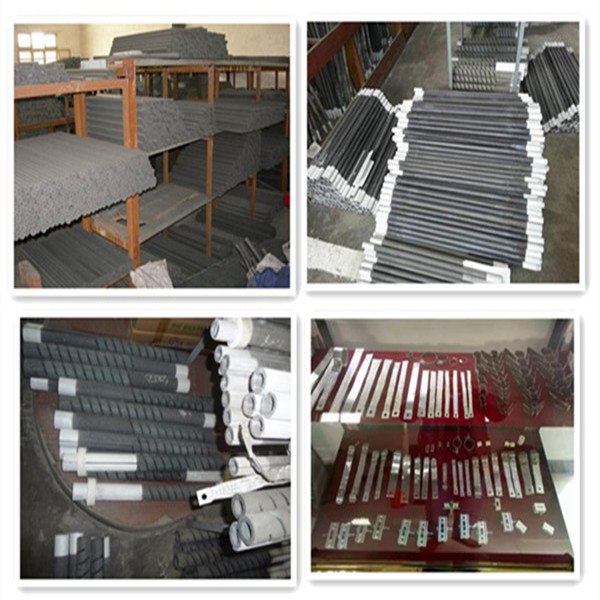

Factory Wholesale Price Silicon Carbide SiC Heating Elements
General Description:
Silicon Carbide SiC Heating Element is one type of ceramic heating elements, which use six-party high purity green SiC powder as the main raw material. Silicon is recrystallized under 2200 ℃ high temperature to form finished materials. the using temperatures up to 1450 °C under oxidation atmosphere, and constant working life up to 2000 hours.
It is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, powder metallurgy, glass, metallurgy and machinery etc.
Physical properties of Silicon Carbide SiC Heating Elements:
Specific gravity |
2.6~2.8g/cm3 |
Bend strength |
>300kg |
Hardness |
>9MOH'S |
Tensile strength |
>150kg/cm3 |
Porosity rate |
<30% |
Radiancy |
0.85 |
Advantage of Our Silicon Carbide SiC Heating Elements:
1. Selecting high purity green SiC powder, to ensure best foundation for top quality.
2. SiC tube is extruded by 500T press machine, to ensure high density uniform through whole length.
3. Excellent resistance rate between heat zone and cold zone, to avoid over-temperature of cold zone to damage furnace body.
4. Special technology to spread a protect film on the surface of hot zone, which enhance the Antioxidant property evidently and lengthen the service life.
5.Compared with metal electric heating element, with high temperature, anti-oxidation, corrosion resistance, long life, easy installation and maintenance, etc
When ordering, please indicate the following data:
Out diameter(OD)
Length of Hot zone (HZ)
Length of Cold zone (CZ)
Resistance (at 1050C +/-50C)
If type U or W, please mark terminal distance A
Note: types and sizes list here are common ones. We also provide other special types.
Can be customized all kinds of sizes according to customer's demand.
