| Brand Name: | Techwin |
|---|---|
| Ambient Humidity: | / |
| Element detection limit: | / |
| Elements detection: | / |
| Detection Time: | / |
| Model Number: | TW4950 |
| Place of Origin: | China (Mainland) |
Quick Details

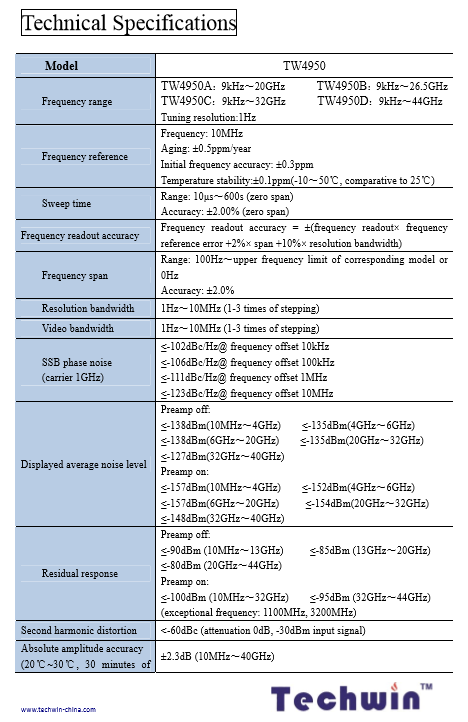

Specifications
Techwin Portable Spectrum Analyzer TW4950
Main Characteristics
--Wide frequency range: from 9kHz to 44GHz, 4 models
--Low displayed average noise level: -163dBm@1Hz RBW(typical)
--Excellent phase noise performance: -106dBc/Hz@100kHz frequency offset@1GHz carrier
--High sweep speed: for 1GHz span, shortest sweep time <20ms
--Resolution bandwidth: 1Hz10MHz
--Full-band pre-amplifier: standard configuration
--Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI),AM/FM/PM analyzer, channel scanner, high accuracy power meter etc.
--Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask.
--Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc.
--Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen operation, combination of LCD and touch screen, various display modes, and automatic adjustment of backlight brightness etc.
--Working temperature range: -10℃55℃; Power supplied by battery or adapter.
Main Characteristics
--Wide frequency range: from 9kHz to 44GHz, 4 models
--Low displayed average noise level: -163dBm@1Hz RBW(typical)
--Excellent phase noise performance: -106dBc/Hz@100kHz frequency offset@1GHz carrier
--High sweep speed: for 1GHz span, shortest sweep time <20ms
--Resolution bandwidth: 1Hz10MHz
--Full-band pre-amplifier: standard configuration
--Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI),AM/FM/PM analyzer, channel scanner, high accuracy power meter etc.
--Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask.
--Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc.
--Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen operation, combination of LCD and touch screen, various display modes, and automatic adjustment of backlight brightness etc.
--Working temperature range: -10℃55℃; Power supplied by battery or adapter.
