| Brand Name: | techwin |
|---|---|
| Wavelength: | 850/1625(nm) |
| Data Rate: | / |
| warranty: | one year |
| Connector: | FC/PC |
| Model Number: | Techwin Advanced Handheld OTDR TW3100E to troubleshoot fiber network |
| Place of Origin: | China (Mainland) |
Quick Details

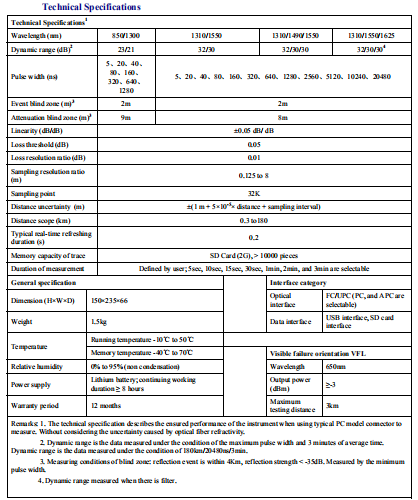

Specifications
Techwin Advanced Handheld OTDR TW3100E to troubleshoot fiber network
Main features:
Main features:
--Automatic Measurement Mode:Only by selecting the measurement wavelength, the
Measurement parameters are automatically set, and the trace data is automatically saved and
Automatically analyzed.
--Multi-wavelength Measurement Mode:in the parameter setting, the wavelength can be
Automatically switched into the multi-wavelength measurement mode. under this mode, the
Analysis can be achieved on the attenuation state of the same fiber section under different
Wavelengths.
--Trace Fixing Function:It can achieve the same-screen comparison and display of one trace
with another real-time trace or the trace under the average measurement, which is very useful
for the installation of multi-core fiber or the checking of the aged fiber in the optical fiber
Network already been installed.
--Multi-wavelength Analysis Function:It can achieve the comparison, display and analysis
Functions of any trace file.
--FTTx online testing, able to identify the splitter and the fiber's end.
--Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.
--Bellcore file format (.Sor),with the storage of greater than 10,000 traces.
--Communication Light Detection:It can effectively protect the test instrumentation and
Communication equipments.
--Connection State Detection:to promptly know the connection status of the instrumentation
and the fiber for test.
--the Switching of Measurement Mode:through the shortcut key operation, it can achieve the
Flexible switching of real-time measurement mode and average measurement mode.
--to achieve easily the function ofBulk amendmentandBatch printing.
--Able to generateDifferent forms of test reportsAccording to user needs.
--to provide various flexible printing modes:the single-page single-trace printing mode, the
Batch printing mode, the single-page multi-trace printing mode, the printing mode of multi
Waveform display. to provide the personalized selection of printing options and page setup.
--the Function of Waveform Difference Comparison:It can open several waveforms in the
Same window, making more easily the comparison of parameter change caused by fiber aging
Same window, making more easily the comparison of parameter change caused by fiber aging
or other reasons.
