Product Description



Place of Origin:South Korea
Brand Name: L-S
Model Number:  SV040IG5A-4
Theory:  Optical Sensor
Usage:  Speed Sensor
Output:  Switching Transducer

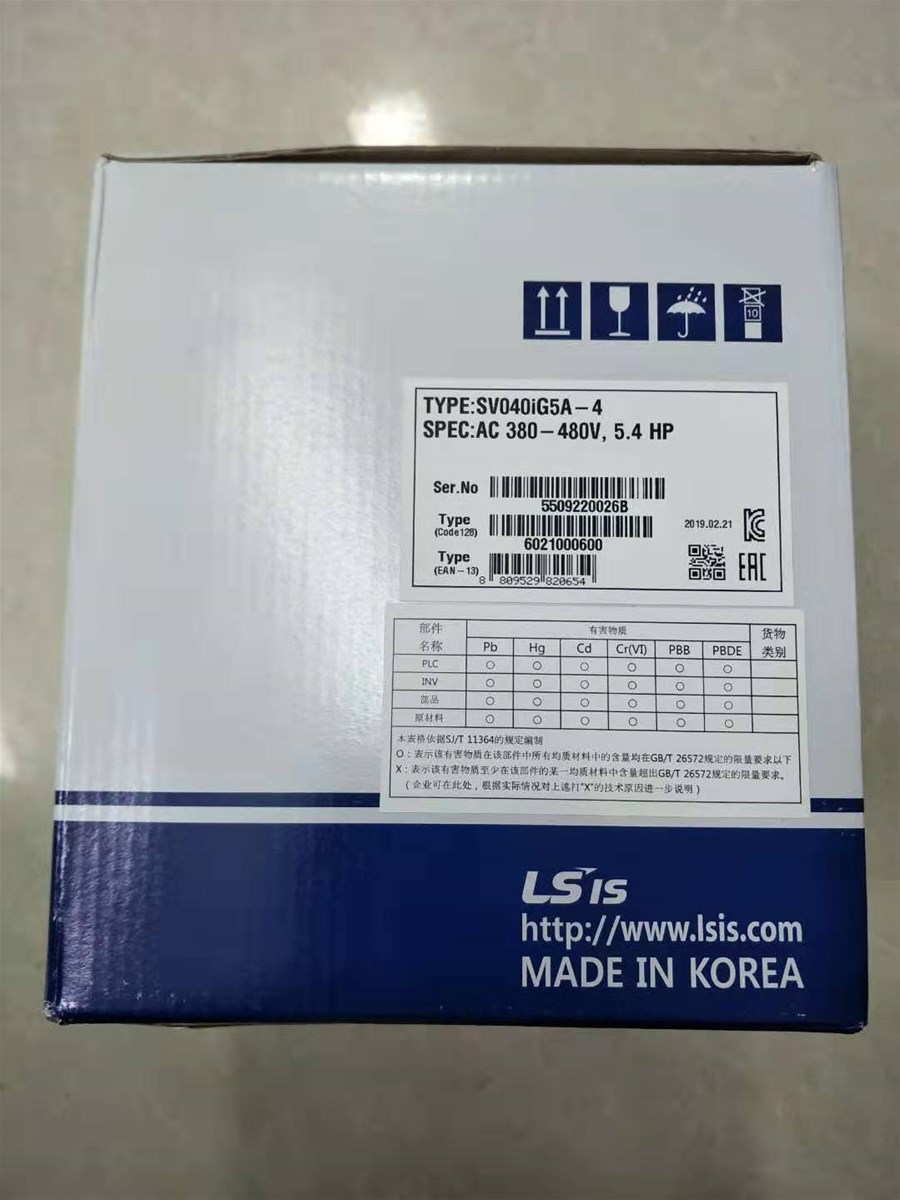

  LS  SV040iG5A-4 AC Drive Inverter  3 Phase 5.4HP 4KW  380~480V

Features:

*Selectable V/f, sensorless vector control

*Motor parameter Auto-tuning

*Powerful torque at overall speed range

*0.1 ~ 400Hz frequency output

*-15% ~ +10% input voltage margin

*Fault history: Last 5 faults

*0~10Vdc / -10 ~ +10Vdc analog input

*IP20 enclosure, UL Type 1 (Option)

*Selectable manual/automatic torque boost

*Selectable PNP/NPN input signal

*2nd motor control and parameter setting

*Built-in Dynamic braking transistor as standard

*Enhanced process PID control

*Built-in RS485 (LS Bus / Modbus RTU) communication

*Cooling fan on/off control & Easy change

*Remote control using external keypad * RJ45 cable(Optional)

*Upgraded functions:

Sleep & Wake-up (Energy savings)

KEB(Kinetic Energy Buffering) protection

Low leakage PWM algorism

*Monitoring & commissioning PC based software tool (Drive View)
