Fiber Fusion Splicer TCW-605E of Techwin for construction and maintenance of fiber and cable

We will try our best to provide products similar to Fujikura Fusion Splicer, Sumitomo Fusion Splicer, FITEL Fusion Splicer, INNO Fusion Splicer, ILSINTECH Fusion Splicer, FiberFox Fusion Splicer.

how about this Product?

the TCW-605E Series adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 8 seconds typically, TFT LCD monitor displays all steps of fiber fusion clear at a glance.

the Uses:

 the TCW605E Series Fusion Splicer have been using in English, Spanish, Portuguese, French, Italian, German, Arabic, Russian, Korea, Japanese, etc.

 Widely used for SM and MM Quartz Fiber with diameter 80-150μm(300μm  optional),  coating  layer  diameter 0.1-1.0mm and bare fiber length 16mm more or less.

 Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.



Detailed Introduction:

 Not only a Fusion Splicer, but also your partner who make your job easy and happy

 5.0 inch TFT color LCD monitor with anti-reflective coating

 the advanced core to core fiber profile alignment system(PAS)

 ARC Calibration FREE system. ARC Calibration sub-menu included in the Menu too, can do the ARC Calibration by Manual when necessary

 X/Y axes was displayed or both X and Y were displayed simultaneously, Magnification up to 300 times

 8 seconds splicing time, 30 seconds Heat-Shrinking

 Battery capacity was display in real time, precisely

 Built-in high capacity battery, support 200 cycles(splicing /tube heating), to meet one days' work

 Long Electrode Lifetime, up to 4000 times

 the new wind-cover design, enhance the ability to prevent the dust & wind, Max. Wind velocity of 15m/s

 Two Splicing modes: auto, manual

 Built-in super high-brightness LED supply convenience for night work

 Auto calculate splicing loss based dual camera cladding axis alignment data

 Small bulk and light weight, only 2.0kg include battery

 4000 results Storage

 2.0 USB data interface

 Compliance with IPx5 standard protection

 Thermal compartment of turned on manual.

 the software allows the fulfillment of all the functions of the TCW-605E Fusion Splicer, and its updating is guaranteed for a period of 5 years

 One year warranty( TWO years or THREE years warranty is available for special order)



Technical Specifications:

 Average Splicing Loss : 0.02dB with G.652 and G.657, 0.01dB with G.651 and 0.04dB with G.653 and G.655

 Splicing Time : Typical splicing time:8s

 Heating Time : Typical heating time:30s

 Return Loss : 60dB or greater

 Fiber Coating : 100μm to 1000μm

 Fiber Cladding : 80μm to 150μm(300μm optional)

 Fiber Cleave Length : 816mm(coating diameter<250m), 16mm(coating diameter 2501000m)

 Heat-Shrinkable Tube : Built-in super High-brightness LED supply convenience for night work

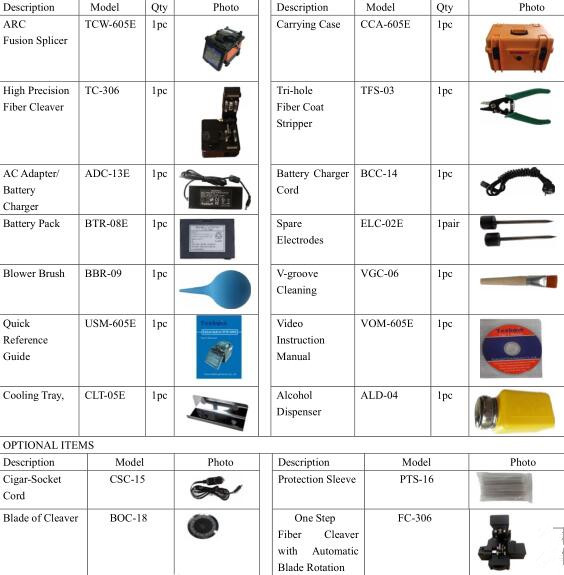

Standard Package:
