| Brand Name: | techwin |
|---|---|
| Color: | white |
| Channel: | / |
| Distance: | / |
| distances: | / |
| Model Number: | Laser Fiber CKLS |
| Place of Origin: | China (Mainland) |
Quick Details

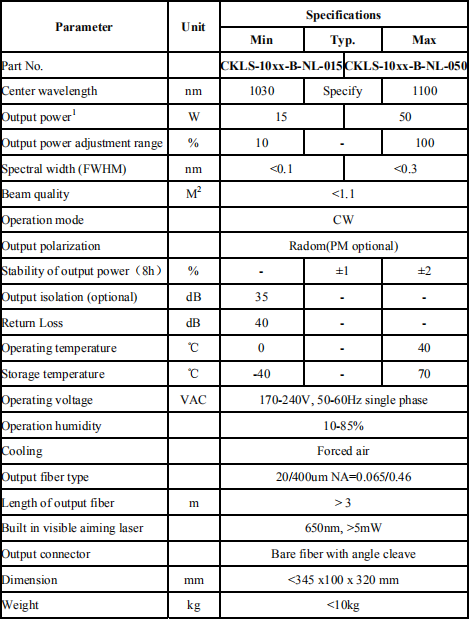

Specifications
Techwin Narrow Linewidth CW Fiber Lasers for Spectrum Combination
We try to supply fiber laserSimilarto keopsys fiber laser,NKT Photonics fiber laser,NP Photonics fiber laser,IPG Photonics fiber laser,BKtel Photonics fiber laser
Techwin 1.0μm Narrow Linewidth CW fiber lasers are specific designed for high demanding applications such as spectrum combination. this MOPA designed fiber laser features narrow spectrum width, say less than 0.1nm, cascaded multi-stage all fiber amplifiers generate high power output and maintain high output beam quality, singlemode output.
the seed laser is unique, Techwin has the all fiber technology for generating narrow spectrum width seed laser, it keeps broadband spectrum content, this is the key advantage to eliminate non-linear effects during high power amplification, such as SBS. Techwin 1.0μm narrow linewidth CW fiber lasers are ideal for power scaling without SBS effect.
Techwin 1.0μm narrow linewidth CW fiber lasers employ the control system based on microprocessor which has stable property, long lifetime and free maintenance. with a clear interface and easy control, the LCD on the front panel can give a real-time display of the operating state of the output power and temperature. the LCD can also offer warning messages. Besides, in order to be convenient for system integration, our company can offer modularized encapsulation according to the user's requirements.
Application:
Seed laser for high power fiber lasers
Spectrum combination
Coherent combination (PM version)
Test and measurement
Science research
Feature:
High output power: up to 100W
Excellent beam quality, singlemode
High Stability and reliable performance
All-fiber structure
PM optional
Notes:
1. Output power is on request, higher output power can be offered.
2. Spectral width on request, narrower linewidth is optional.
3. the output power stability is measured under 25℃, 30 minutes after warm-up;
4. PM fiber is optional.
Ordering information:
CKLS-10xx-B-NL-015-0 for 15W output power CKLS-10xx-B-NL-050-0 for 50W output power
for examples:
CKLS-1070-B-NL-015-0: 1070nm narrow linewidth fiber laser with 15W output power, non-PM version, bare fiber
CKLS-1070-B-NL-050-0: 1070nm narrow linewidth fiber laser with 50W output power, non-PM version, bare fiber
Exhibition:
We try to supply fiber laserSimilarto keopsys fiber laser,NKT Photonics fiber laser,NP Photonics fiber laser,IPG Photonics fiber laser,BKtel Photonics fiber laser
Techwin 1.0μm Narrow Linewidth CW fiber lasers are specific designed for high demanding applications such as spectrum combination. this MOPA designed fiber laser features narrow spectrum width, say less than 0.1nm, cascaded multi-stage all fiber amplifiers generate high power output and maintain high output beam quality, singlemode output.
the seed laser is unique, Techwin has the all fiber technology for generating narrow spectrum width seed laser, it keeps broadband spectrum content, this is the key advantage to eliminate non-linear effects during high power amplification, such as SBS. Techwin 1.0μm narrow linewidth CW fiber lasers are ideal for power scaling without SBS effect.
Techwin 1.0μm narrow linewidth CW fiber lasers employ the control system based on microprocessor which has stable property, long lifetime and free maintenance. with a clear interface and easy control, the LCD on the front panel can give a real-time display of the operating state of the output power and temperature. the LCD can also offer warning messages. Besides, in order to be convenient for system integration, our company can offer modularized encapsulation according to the user's requirements.
Application:
Seed laser for high power fiber lasers
Spectrum combination
Coherent combination (PM version)
Test and measurement
Science research
Feature:
High output power: up to 100W
Excellent beam quality, singlemode
High Stability and reliable performance
All-fiber structure
PM optional
Notes:
1. Output power is on request, higher output power can be offered.
2. Spectral width on request, narrower linewidth is optional.
3. the output power stability is measured under 25℃, 30 minutes after warm-up;
4. PM fiber is optional.
Ordering information:
CKLS-10xx-B-NL-015-0 for 15W output power CKLS-10xx-B-NL-050-0 for 50W output power
for examples:
CKLS-1070-B-NL-015-0: 1070nm narrow linewidth fiber laser with 15W output power, non-PM version, bare fiber
CKLS-1070-B-NL-050-0: 1070nm narrow linewidth fiber laser with 50W output power, non-PM version, bare fiber
