| Connection: | Plug In |
|---|---|
| Output Type: | AC to DC |
| Brand Name: | Smarts |
| WARRANTY: | 2 YEARS |
| Color: | White |
| Model Number: | SMT-012-012VP |
| Place of Origin: | China (Mainland) |
| outer case: | Plastic |
Quick Details
Specifications

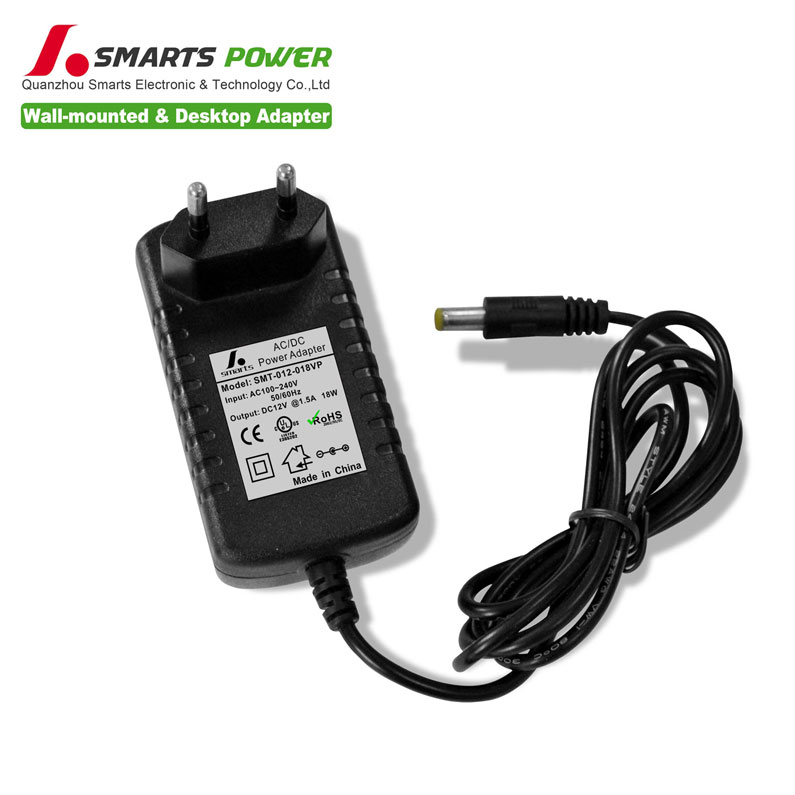

Input 100-240v AC output 12v DC 1a power supply adapter for CCTV
Features
Universal AC input: 100~240Vac
Protections: Short circuit / Overload
No load power consumption < 0.5W /over voltage
2 or 3 pole US / European type plug
Fully enclosed plastic case
Class II power (without earth pin)
Full output 12v,24v safety approved
18 months warranty
General Specification
- AC input voltage range............. 100~240VAC / 0.5A for18W; 100~240VAC / 0.7A for 25W
- AC inrush current (max.)........... Cold start, <30A peak at 115VAC or <50A peak at 230VAC
- Overload protection................... Hiccup mode, auto-recovery
- over voltage protection............. Clamp by zener diode > 120%
- Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
- Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
- Safety standards........................ EN61347-1-2,, TUV EN60950-1
- EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
- Length of output cable................ 180cm of 20AWG
- Standard DC plug....................... P1J: 2.1x5.5x10mm or 2.5x5.5x10mm / -C+, turning fork type
Model |
Output voltage |
Current |
Power |
Tol. |
R&N |
Effi. |
SMT-012-012VP |
12V |
1A |
12W |
±3% |
80mV |
>82% |
SMT-024-012VP |
24V |
0.5A |
12W |
±2% |
180mV |
>82% |
