Series CTS/CTN/CTB Permanent-Magnetic Roller Separators

 |

Product Description

Instruction

    They are used in mines and coal separating factories to separate the wet fine magnetic materials or remove the magnetic materials from the non-magnetic materials.The separators have three types of tanks:half countercurrent tank(CTS) and countercurrent tank(CTN), which are used according to different granular and technological requirements.

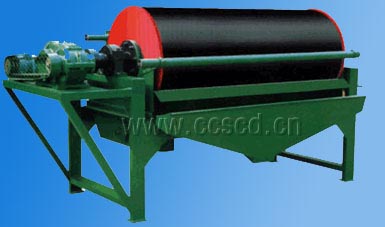

Series CTSCTNCTB PermanentMagnetic Roller Separators

Magnetic Drum Separator for Mineral Ore CTS/CTN/CTB Series:

---Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.
---the downstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: 6-0 mm.
---the half upstream tank (Series of CTS) is applicable to rougher flotation and concentration of ore with size: O~0.5mm, the granularity of granule is 0.15-0.8mm.

Working principle of Iron Ore Equipment:

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. this is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. this time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.

Magnetic Separator CTB Series Feature:

--Optimized design
--Scientific magnetic circuit, made of strong magnetic coercive force
--High-remanence permanent magnet
--Safe and reliable.
--adopt rate earth complex magnetic system,advanced technology,reasonable structure,the special design makes the magnetic intensity more rational in picking and sweeping area,the effect is obvious.
--Special-designed tanks make materials difficult to jam or run.
--Two parts of roller adopt grind-proof AL flange,the roller surface have grind-proof material,long service life and good grind-proof character.
-- Adopt cycloid reducer,small volume,light weight,low power consuming.
--Simple structure and operation,easy maintenance,large disposal capacity.

(Different Gauss can be expected at the drum surface. )

Wet High Intensity Magnetic Separator Specifications:

1. Wet magnetic separator in mining
2.80-150t/h; 4000GS

Magnetic Drum Separator for Mineral Ore Applications:

for wet separation removing strong magnetic substances, such as magnetite, Ti magnetite, franklinite, pyrrhotite, maghemite, etc. from feebly magnetic minerals and non-magnetic materials.

Three types of tanks:

Half counter-current tank (CTB), direct flow tank (CTS) and counter+ current tank (CTN), which are used according to different granular and technological requirements.
