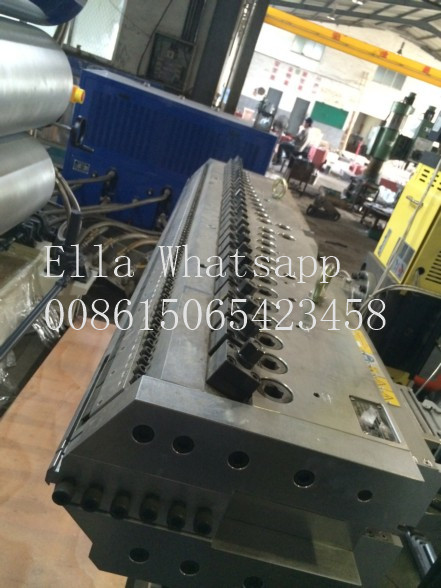

PET Monolayer/Multilayer PET Sheet Manufacturing Machine 0.2-2mm Thickness

1. Summary Introduction:

this PET sheet extrusion line is customized and equipped with different center control machines and moulds,

the PET Sheet Extrusion Line is designed for PET mono/multi layer sheet for packing indusry. the technolosy of single

Screw extruding with low dew=-point dehumidifying system for high quality products in high transparency wthout buddle,

Which will be very important for thermoforming.

2. Raw Material for PET Sheet Making Machine:

2.1 can be virgin plastic PET material

2.2 can be recyclable material, like PET bottle Flakes.

3. Technical Parameters:

Extruder Model	LMSB-90/33	LMSB-100/33	LMSB-120/33	LMS-100/65	LMSB-120/65
Sheet Width	300-610mm	500-950mm	1000-1500mm	500-950mm	1000-1500mm
Sheet Thickness	0.15-1.4mm	0.15-1.4mm	0.15-2mm	0.25-1.4mm	0.25-1.4mm
Driving Motor	75KW	90KW	132KW	90KW,75KW	132KW, 65KW
Line Speed	25m/min	25m/min	28m/min	28m/min	28m/min
Capacity	180kg/h	300kg/h	550kg/h	450kg/h	650kg/h
