| Type: | Other |
|---|---|
| Brand Name: | Guolian |
| Packaging Material: | Plastic,Wood |
| Packaging Type: | Belt |
| Application: | Apparel,Chemical,Commodity,Machinery & Hardware,Medical,Textiles |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CCC |
| Dimension(L*W*H): | 3.2m*1.2m*1.4m |
| Weight: | 2500kg |
| Model Number: | GL-702 |
| Place of Origin: | China (Mainland) |
| Power: | 5HP |
| Voltage: | 380v |
| Automatic Grade: | Automatic |
| cutting width: | 2-1300MM |
| max cutting diameter: | 400MM |
Quick Details
Specifications

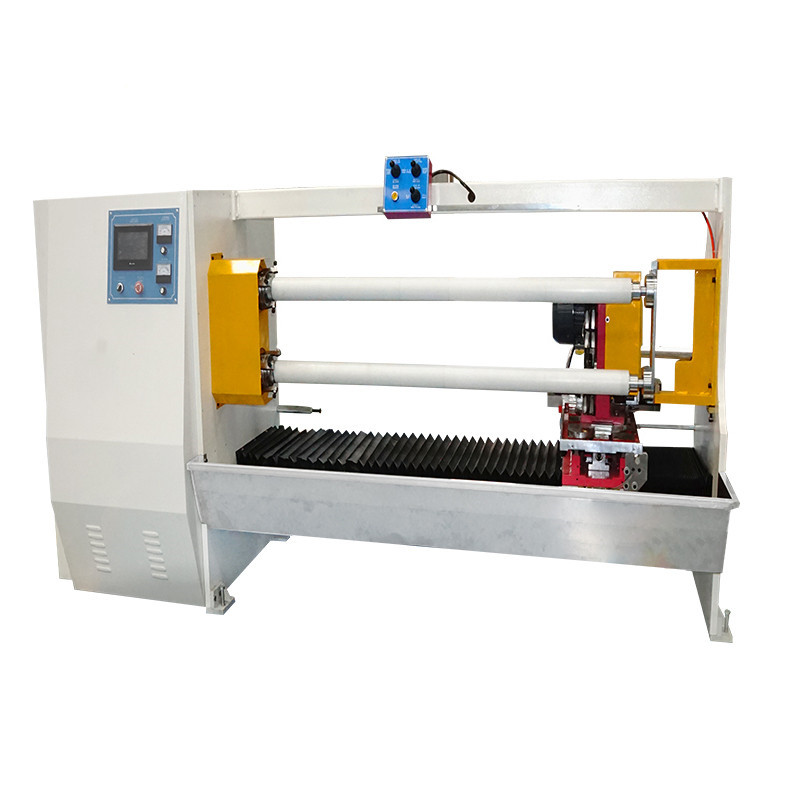

GL- 702 Two cutting axis Automatic adhesive tape log roll converting machine
for cutting BOPP / PVC / PE /PET/ EVA / 3M/Mylar / masking /foam / cloth /double sticky /Kraft / aluminum duct tape etc.
GL- 702 Two cutting axis Automatic adhesive tape log roll converting machine features:
1. Automatic control of PLC system with LCD touch screen control panel, 20 modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.
2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.
3. AC motors for cutting blade and cutting shaft with inverters speed changing.
4.Positioning system for cutting: Servo motor to control more accurate position.
5.Sliding system,high precision liner sliding track and ball screw.
6. Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness.
7.Two shafts, Two blades.
