ⅠApplication

LC-600-type temperature indicator is a high-precision instrument that developed for rapid temperature measuring in smelting, casting and other industries.

with a high-performance single-chip microcomputer as the core, the instrument applies a high-precision measurement sensor and a variety of intelligent processing technologies. Therefore, our instruments can ensure customers steady operation for a long term and high anti-jamming capability.

Accurate and rapid temperature measurement can be conducted in a variety of melting occasions by connecting it with matched thermocouples.

Thermocouple	Type	Measurement range(℃)	Applicable Occasion
Single Pt-Rh	KS-602	0~1750	Liquid steel, iron, copper
Single Pt-Rh	KR-602	0~1750	Liquid steel, iron, copper
Dual Pt-Rh	KB-602	500~1800	High-temperature liquid steel
W-Re	KW-602	0~2000	Liquid steel, iron
Ni Cr - Ni Si	K	0~1000	Liquid aluminum, zinc

Ⅱ Features

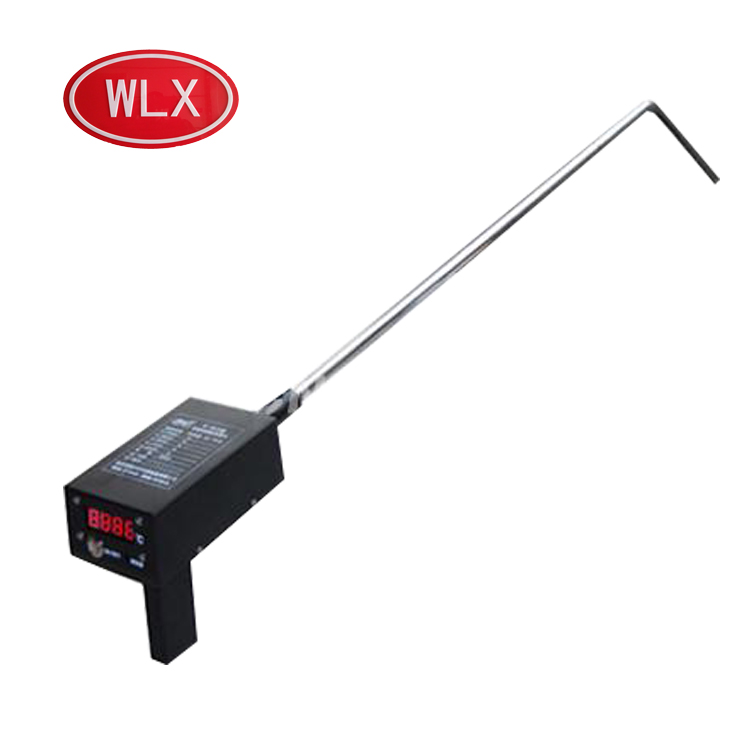

LC-600 temperature indicator is integrated with thermocouple lance. Due to the harsh working environment and high temperature, the thermodetector is shock-proof and employs hi-lite LED and full metal jacket. Thus the LC-600 thermodetector is durable. Specific functions are as following:

1, Temperature automatic saving function;

2, Prompt function: light and buzzing simultaneously

3, Alarm function for thermocouple breakdown, outrange, under-voltage, etc.

4, Use Nickel-Hydrogen charging battery, can test more than 1000 times with one charge;

5, deenergize automatically after power on over two-minute without signal input

this instrument can be matched with five kinds of thermocouple.

Latest anti-jamming measures are applied. Temperature measurement can be conducted in the intermediate frequency furnace with power on.



Ⅲ Technical Performance Indicators

Graduation	Measurement Range (℃)	Accuracy
S	0~1750	≤±0.2%±1℃
R	0~1750
WRe3/25	0~2000
B	500~1800
K	0~1000

2, Resolution Ratio(℃): 1
3, Respond Time(S):1
4, Power Supply: rechargeable batteries DC6V±10%
