| Brand Name: | techwin |
|---|---|
| Wavelength: | / |
| Data Rate: | / |
| warranty: | 12 months |
| Connector: | usb |
| Model Number: | Fiber Amplifiers CKLIA-1550-M-SF-LP |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

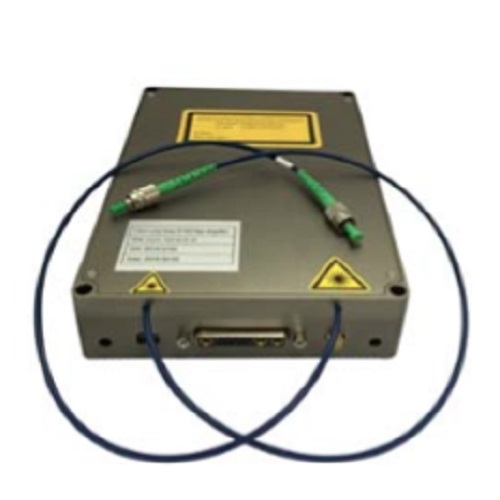

Techwin 1550nm Long Pulse Single Frequency PM Fiber Amplifiers
We try to supply Fiber Laser similar to keopsys fiber laser,NKT Photonics fiber laser,NP Photonics fiber laser,IPG Photonics fiber laser,BKtel Photonics fiber laser

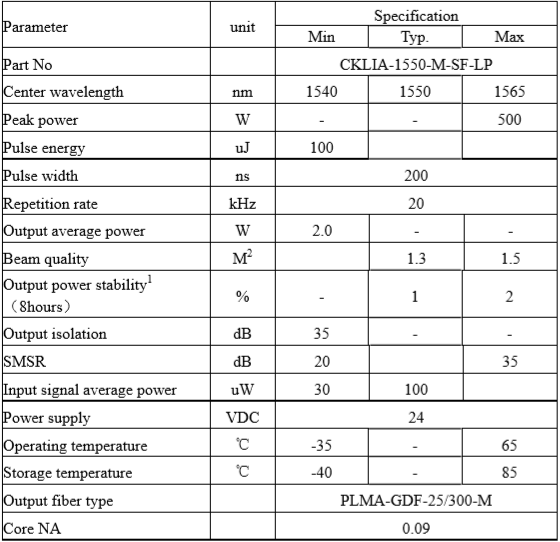

1. the output power stability is measured under 25℃, 30 minutes after warm-up;
2. for more information about integrated 3-Port Optical Circulator, please contact with us.
Ordering Information: CKLIA-1550-M-SF-LP-200-20-500-FA/Col-Option
Option: High power 3-port optical circulator, output port #2 fiber is PLMA-GDF-25/300 fiber, Port #3 fiber is PM1550-XP single mode polarization maintaining fiber, all ports pigtail fibers are with FC/APC narrow key PM connectors.
Trade show:
We try to supply Fiber Laser similar to keopsys fiber laser,NKT Photonics fiber laser,NP Photonics fiber laser,IPG Photonics fiber laser,BKtel Photonics fiber laser
1. the output power stability is measured under 25℃, 30 minutes after warm-up;
2. for more information about integrated 3-Port Optical Circulator, please contact with us.
Ordering Information: CKLIA-1550-M-SF-LP-200-20-500-FA/Col-Option
Option: High power 3-port optical circulator, output port #2 fiber is PLMA-GDF-25/300 fiber, Port #3 fiber is PM1550-XP single mode polarization maintaining fiber, all ports pigtail fibers are with FC/APC narrow key PM connectors.
