Technical Data

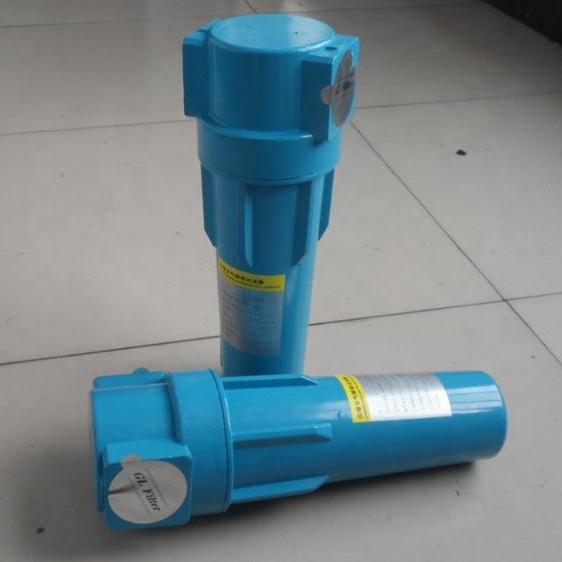

1. XF3-24 compressed air filter (high-efficiency oil removal), with flow rate of 3m3/min., connection size of 1-1/2 inches, applicable for filtrating 0.01μm and greater solid and liquid particles. the oil content is 0.001PPM.

2. Due to different liquid load capacity of different models of filter elements, the principle of Coarse First and then Fine for XF9-XF7-XF5-XF1 must be strictly followed for filter element selection and installation.

3. Features:

Extension current route to slow pressure drop

Filter housing is made of high-quality aluminium alloy and carbon steel.

Surface is coated with epoxy resin powders so as to improve the durability and corrosion resistance.

Threaded connection is used at inlet and outlet. Filter housing is marked with flow direction of air, with easy installation.

Compact design is to reduce the space for maintenance.

New pressure indicator can indicate the best time to change the filter.

Level indicator can be convenient to monitor the liquid level and pay attention to the state of preventive maintenance so as to avoid downstream pollution.

Reliable automatic drain
