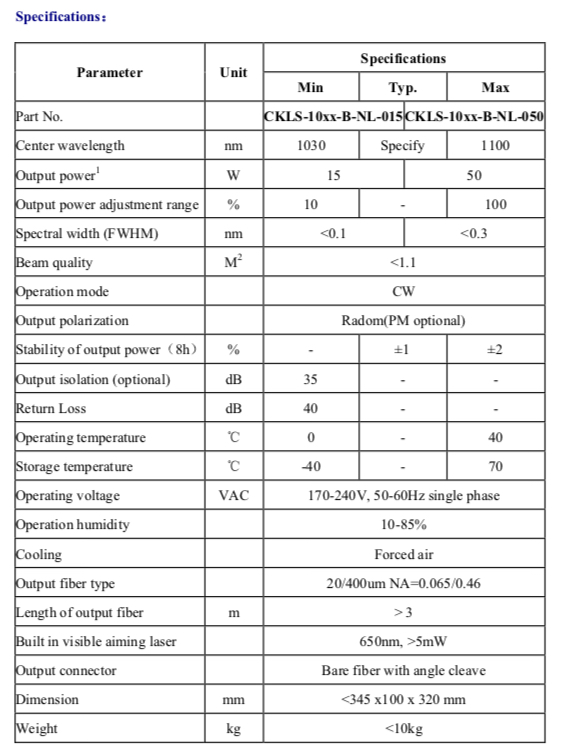

Specifications
Techwin 1.0um Narrow Linewidth CW fiber lasers for spectrum combination
We try our best to provide products similar to Keopsys fiber laser, NKT Photonics Fiber laser, NP Photonics Fiber laser, IPG Photonics Fiber laser, BKtel Photonics Fiber laser.
Product Description:
Techwin 1.0μm Narrow Linewidth CW fiber lasers are specific designed for high demanding applications
Such as spectrum combination. this MOPA designed fiber laser features narrow spectrum width, say less
Than 0.1nm, cascaded multi-stage all fiber amplifiers generate high power output and maintain high output
Beam quality, singlemode output.
the seed laser is unique, Techwin has the all fiber technology for generating narrow spectrum width seed
Laser, it keeps broadband spectrum content, this is the key advantage to eliminate non-linear effects during
High power amplification, such as SBS. Techwin 1.0μm narrow linewidth CW fiber lasers are ideal for power
Scaling without SBS effect.
Techwin 1.0μm narrow linewidth CW fiber lasers employ the control system based on microprocessor which
Has stable property, long lifetime and free maintenance. with a clear interface and easy control, the LCD on
the front panel can give a real-time display of the operating state of the output power and temperature. the
LCD can also offer warning messages. Besides, in order to be convenient for system integration, our
Company can offer modularized encapsulation according to the user's requirements.
Application:
Seed laser for high power fiber lasers
Spectrum combination
Coherent combination (PM version)
Test and measurement
Science research
Feature:
High output power: up to 100W
Excellent beam quality, singlemode
High Stability and reliable performance
All-fiber structure
PM optional
Notes:
1. Output power is on request, higher output power can be offered.
2. Spectral width on request, narrower linewidth is optional.
3. the output power stability is measured under 25℃, 30 minutes after warm-up;
4. PM fiber is optional.
Ordering information:
CKLS-10xx-B-NL-015-0 for 15W output power
CKLS-10xx-B-NL-050-0 for 50W output power
for examples:
CKLS-1070-B-NL-015-0: 1070nm narrow linewidth fiber laser with 15W output power, non-PM version,
Bare fiber
CKLS-1070-B-NL-050-0: 1070nm narrow linewidth fiber laser with 50W output power, non-PM version,
Bare fiber
FAQ
FAQ
Q1:What's your MOQ?
A: 1pc
Q2: how long is the warranty?
A: 12months. the warranty can be extended with extra pay.?
Q3:Why choose us to cooperate?
A:1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.
