| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Power(W): | 220 |
| Brand Name: | Qingdao Leader Machinery co.,ltd. |
| Application: | Sheet |
| Condition: | New |
| Certification: | ISO CE ISO 9001-2008 |
| Voltage: | 220 |
| Model Number: | LMSB-150/33 |
| Place of Origin: | China (Mainland) |
| Automatic Grade: | Automatic |
| Screw Design: | Single-screw |
| Sheet Width: | 1000-8000mm |
| Sheet Thickness: | 0.5-3mm |
| Raw Material: | PE Virgin and Recycle Material |
| Extruder Model: | Sj150/33 |
| T-Die Head: | Jc-Times Brand |
| Three Roller Calendar Material: | 45# Forging Steel, 40cr or Alloy Steel |
| Capacity: | 400-800kg/H |
| Main Electrical Parts: | ABB, Omron, Rkc, Schneider, FUJI, Delix etc. |
| Application: | Housing Waterproof, Architecture Engineering |
| HS Code: | 8477209000 |
Quick Details
Specifications
1.Brief Introduction:

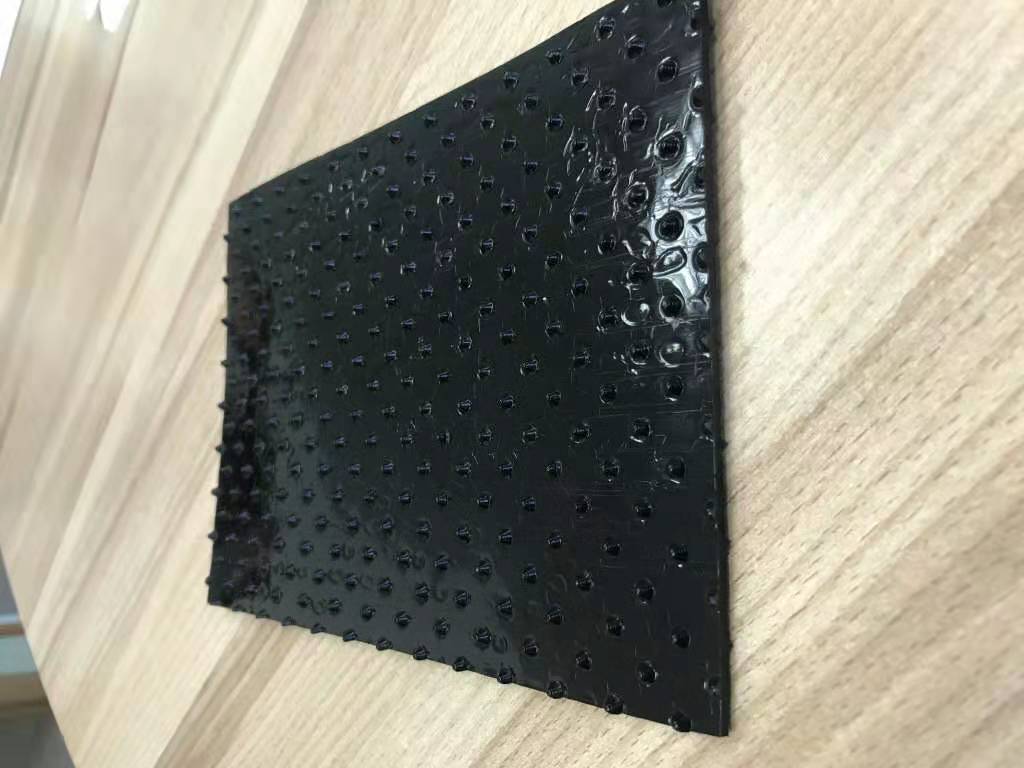

PE waterproof sheet is also known as polyethylene polypropylene composite sheets. It is a new type of composite waterproof sheet which is extruded and laminated in one process by sheet extrusion line added with anti-aging agent, stabilizer, binder, and together with high strength non-woven fabric etc.
2.Techincal parameters:
Material PE
Sheet thickness 0.5-3mm
Sheet width 1000-4000mm5000-8000mm
PAR T1 this LINE CONSISTS of (COMPULSORY) 1
Automatic vacuum feeding machine
1 set 2
High efficiency single screw extruder (120/33)
1 set 3
Hydraulic exchanging unit +melting gear pump
1 set 4
T-type /hanger type die head (JC-Times brand)
1 set 5
Three Roller Calendars (alloy steel material )
1 set 6
Rollers thermoforming machine
1 set 7
Cooling frame and edge cutting unit
1 set 8
Haul off machine
1 set 9
Plastic cutting machine-guillotine
1 set 10
Twin position sheet winder
1 set 11
Stacker
1 set 12
Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)
13
Spare parts
1 set PART 2 ACCESSORY MACHINE PARTS (OPTIONAL) 1
Air compressor
1 set 2
Industrial water chiller
1 set PART 3 SHEET SPECIFICATIONS 1
Sheet width
2000-4000mm 2
Sheet thickness
0.5-3mm 3
Type
Single layer/multi layer sheets 4
Raw material
PE recycle material PART 4 SHEET APPLICATIONS 1
Widely used in construction, such as highway, railway, bridge, dyke, etc. PART 5 PAYMENT, DELIVERY and after SALE SERVICES 1
Payment terms
40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable 2
Delivery time
100 days after receipt of prepayment 3
Packing method
Wooden cases/pallets with stretching films 4
Guaranteed time
18 months for mechanical parts, 12 months for electrical parts 5
after sale service
Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. this is chargeable
3.Performance features:
HDPE geomembrane, also called extra-width waterproof sheets, widely used for
1) waterproofing usage in industrial & civil buildings, including the green roof, flat roof, and the sloping roof.
2) Underground waterproof: reservoir, dam, pool, swimming pool,
3) Waterproof usage in tunnel drainage, grain depot, artificial engineering, landfill, artificial lake, foundation moisture-proof,
