| Model |

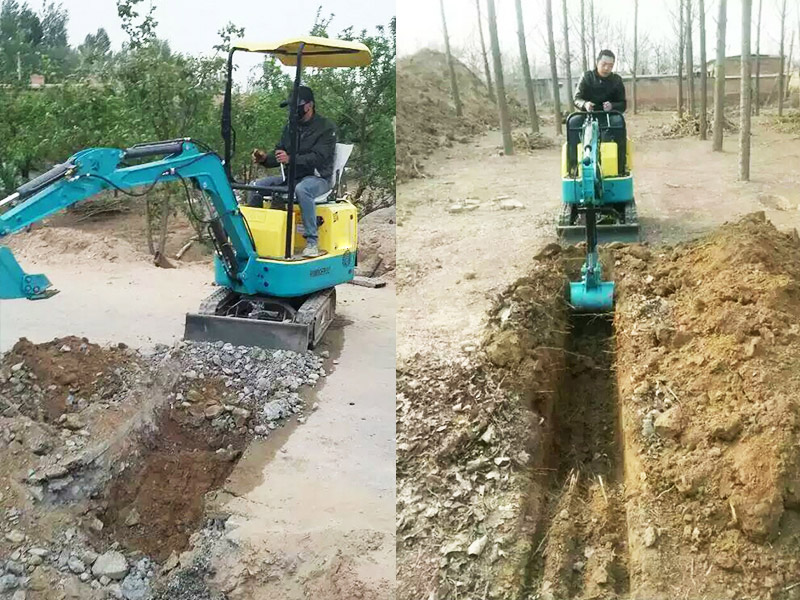

ME08 mini excavator |
| Operating Weight |
800kg |
| Digging bucket capacity |
0.025cbm |
| Bucket width |
380mm |
| Engine |
KOOP |
| Rated power |
8.6 kw/3600r/min |
| Displacement |
0.211 L |
| Bore stroke |
7055 |
| Main pump |
ZANEDA |
| Displacement |
6.8ml/r |
| Swing motor |
SJ-TECH |
| Traveling motor |
KERSEN |
| Travel speed |
1.5km/h |
| Overall dimension( LxWxH) |
2770x896x1490 mm |
| Total length of track |
1230mm |
| Platform ground clearance |
380 mm |
| Platform back turning radius |
784 mm |
| Chassis width |
896 mm |
| Track width |
130 mm |
| Chassis ground clearance |
132 mm |
| Track height |
320 mm |
| Max. Digging depth |
1650 mm |
| Max. Digging height |
2610 mm |
| Max. Dumping height |
1850 mm |
| Max. Digging radius on ground |
2890 mm |
| Min. Rotation radius |
1330 mm |
| Max. Upgrade height of bulldozer blade |
345 mm |
| Max. Digging depth of bulldozer blade |
255 mm |
