Narrow Linewidth CW fiber laser for spectrum combination

We will try our best to provide products similar to keopsys fiber laser, NKT Photonics fiber laser, NP Photonics fiber laser, PG Photonics fiber laser, BKtel Photonics fiber laser.



BriefIntroduction ofTechwin 1.0μm Narrow Linewidth CW fiber laser :

Techwin 1.0μm Narrow Linewidth CW fiber lasers are specific designed for high demanding applications such as spectrum combination. this MOPA designed fiber laser features narrow spectrum width, say less than 0.1nm, cascaded multi-stage all fiber amplifiers generate high power output and maintain high output beam quality, singlemode output.



Narrow Linewidth CW fiber laser'S Advantages:

the seed laser is unique, Techwin has the all fiber technology for generating narrow spectrum width seed laser, it keeps broadband spectrum content, this is the key advantage to eliminate non-linear effects during high power amplification, such as SBS. Techwin 1.0μm narrow linewidth CW fiber lasers are ideal for power scaling without SBS effect.

Besides, Techwin 1.0μm narrow linewidth CW fiber lasers employ the control system based on microprocessor which has stable property, long lifetime and free maintenance. with a clear interface and easy control, the LCD on the front panel can give a real-time display of the operating state of the output power and temperature. the LCD can also offer warning messages. Besides, in order to be convenient for system integration, our company can offer modularized encapsulation according to the user's requirements.



Techwin 1.0μm Narrow Linewidth CW fiber laser'sFeatures:

High output power:up to 100W

Excellent beam quality, singlemode

High Stability and reliable performance

All-fiber structure

PM optional



andWhere are the Narrow Linewidth CW fiber laser Applied?

Seed laser for high power fiber lasers

Spectrum combination

Coherent combination (PM version)

Test and measurement

Science research

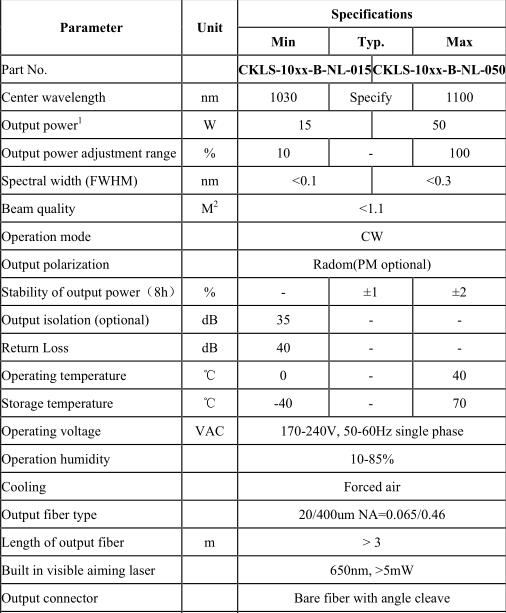

Specifications:
