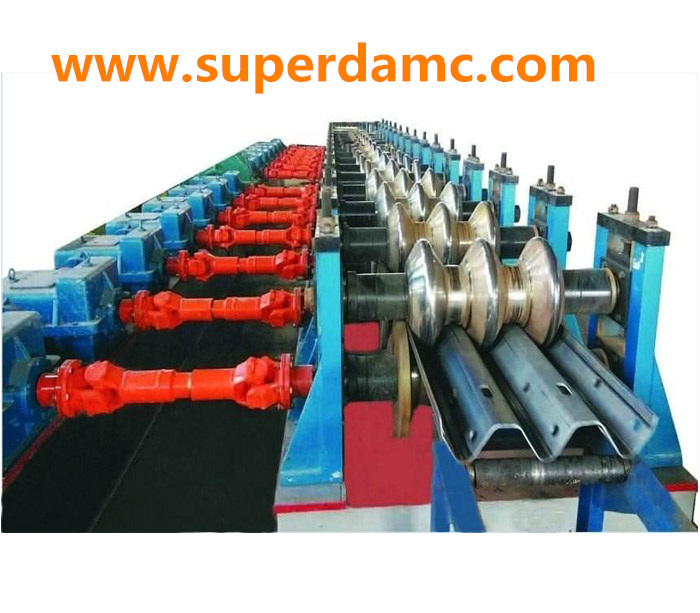

Highway barrier roll forming machine

Guard rail is steel material. It is a continuous structure in which corrugated steel guardrails are spliced to each other and supported by the main column. The effect of the vehicle on absorbing energy during its collision is not easy to be destroyed, and it can also protect the vehicle and the passengers.

YX85-310/506 design for highway, large parking lots, scenic spots, high-speed, provincial roads, and rural roads using guardrail.

According to the surface treatment, it is divided into two types: hot-dip galvanized wave guardrail and galvanized spray.

According to the setting location, it can be divided into a roadside guardrail and a central divider with a guardrail.

According to the anti-collision level, it can be divided into A level and S level. the S-class guardrail is of a reinforced type and is suitable for use on particularly dangerous road sections on the road construction. Class A is used for special roads. Commonly used roadside wave beam guardrails can be divided into five levels according to the anti-collision level: B, A, SB, SA, and SS.

1.Brief Introduction:



Two wave, three wave roll forming machine advantage

1, Highway guard rail production line for producing w beam barrier, 3 wave barrier, guardrail board.

2, PLC control system, automatically and easy handle.

3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.

4,Tracking cutting system with Cr12 Cutting blade.

Guarantee of Quality

Superda guarantee highway guard rail roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.



2.Techincal parameters:



Highway barrier machine main technical parameters:

1.Raw material request:cold rolled or hot rolled steel,galvanized steel

2.Material thickness:2-3mm

3.Whole line working speed:12m/min

4.We adopt cantilever type machine structure

5.20 forming stations

6.Motor power:2x18.5kw Siemens brand

7.Material max. Thickness:2-3mm

8.the diameter of the shaft:75mm

9.Rollers material: GCr15,quenching treatment:HRC58-62°

10.Material of shaft:40Cr heat treatment

11.Driving system:gimbal+gear box



3.Performance features:

Highway guard rail roll forming machine brand for accessorries

Completed Guardrail Production line Including Devices
