| Brand Name: | YinXun |
|---|---|
| Wavelength: | 75~120 |
| Data Rate: | 40~100 |
| warranty: | ISO 9001/CE/FCC |
| Connector: | IP / E1 / Fiber |
| Model Number: | ZMUX-08S |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
ZMUX-08S is a interface module design, flexible configuration according to client's requirement. It has 8 cards, each one is a single & individual card. the device is mini size,small body,1U height, easy to install and maintain. It is with indicator,which show the operating status of the equipment.

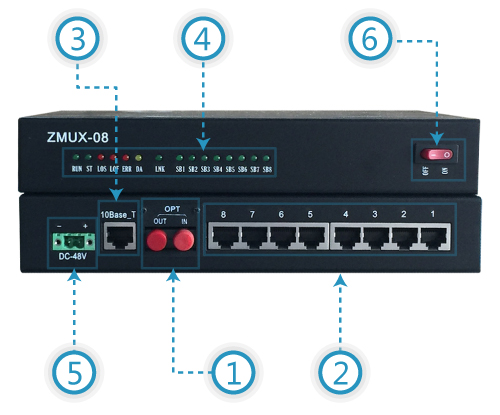

A diagram of ZMUX-08S
| Interface NO. | Interface Name | Instruction |
| Link interface | 1 channle fiber interface, optional: single or daul fiber, single-mode or multimode, SC or FC, 40km or 80km or 100km. | |
| User interface | 8 channels user interface, designed as modular.It can be inserted according to application.(voice calls, 4W audio, RS232,etc) | |
| User interface | 1 channel 10M Ethernet interface (Optional, modular) | |
| Indicator | Equipment alarm indicator lights, running lights. | |
| Power supply interface | -48V DC power supply plug (green), power switch (red). | |
| Switch | the power switch |
Features
* 1-8 service interfaces,1 module corresponding to 1 channel user interface, customize client's requirements
* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/Ethernet/ V.21 etc.
* fiber link interface
* SC/FC connector
* Single mode/Multi-mode
* transmitting distance:0-100KM
* fit to place in 19inch standard cabinet
* flexible configuration and expansion
* alarm function, support self loop testing
* AC220V/DC-48V/AC220V+DC-48V

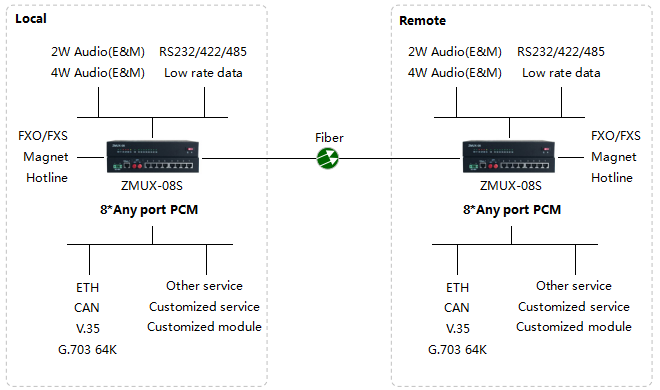

Network Diagram
ZMUX-08S is self-R&D producted by Yinxun, and we have exported a lot to overseas. It is simple,stable and reliable to use. We support ODM, OEM, as well as technical cooperation.
