| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Power(W): | 220W |
| Brand Name: | Qingdao Leader Machinery co.,ltd. |
| Application: | Sheet |
| Condition: | New |
| Certification: | ISO CE ISO 9001-2008 |
| Place of Origin: | China (Mainland) |
| Screw Design: | Single-screw |
| Machine Width: | 3000mm |
| Machine Thickness: | 0.5-3mm |
| Main Extrusion Capacity: | Max 600kg.H |
| Calibrating Method: | 3.5m Width Three Roller Calendars |
| Die Head: | Jc-Times, T-Die Head |
| Sheet Application: | Waterproof , Warehouse Roofing, Geomembrane |
Quick Details
Specifications
Techincal parameters:
1. Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual Sheet thickness
: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
3. Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.
4. T -type die head:
Suitable compression ratio to ensure uniform flow stability.

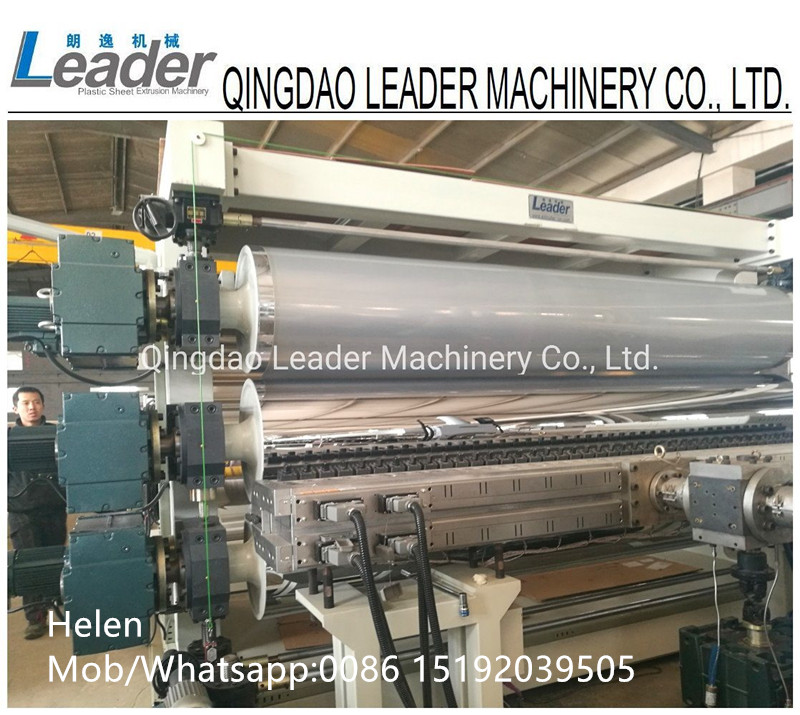

5. Three-roller calendar:
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. the independent oil temperature control for three roller to ensure more stable and exact control.
6. Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller
7. Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.
8. Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
