| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Power(W): | 220W |
| Brand Name: | Qingdao Leader Machinery co.,ltd. |
| Application: | Sheet |
| Condition: | New |
| Certification: | ISO CE ISO 9001-2008 |
| Place of Origin: | China (Mainland) |
| Screw Design: | Single-screw |
| Plastic Processed: | |
| Sheet Thickness: | 1-10mm |
| Sheet Width: | 2100mm |
| Processing Technology: | Three Roller Calendars |
| Die Head: | T-Type, Coat Hunger Type |
| Main Electrical Parts: | ABB, Omron, Rkc, Schneider, Siemens etc |
| HS Code: | 8477209000 |
Quick Details
Specifications

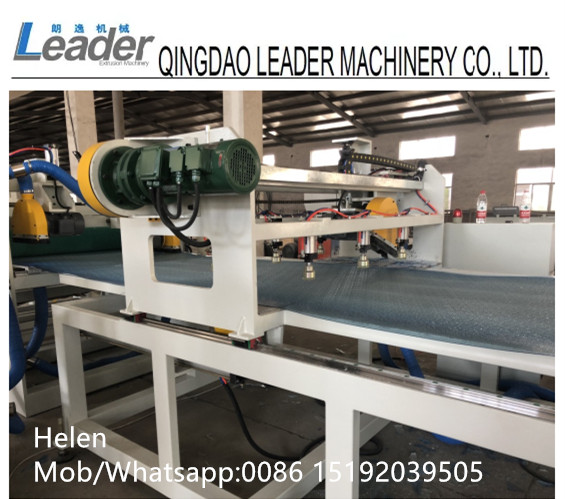

Embossed PC Solid Sheet Extruder Machine
this machine is specially used to produce the polycarbonate universal solid sheets, which is as clear as glass, but the density of PC is only half of glass. and the PC solid sheet is with high impact resistance, which is also called " Unbreakable glass". by changing the three rollers calendars, this line can also produce frosted solid sheets, diffusion solid sheets, embossed solid sheets and anti-scratch solid sheet etc for different applications.
PART 1 SOLID SHEET SPECIFICATIONS:
1) Thickness: 1.8mm-12mm
2) Width range: <= 2,100mm
3) Length: Any dimension.
4) Color: Clear, blue, green, opal, brown, blue green etc.
PART 2 SOLID SHEET APPLICATIONS:
PC solid sheet is easy to be shaped with cold bending, equipment and heat synthesis processing accordingly, which used widely in all kinds of architecture, engineering and decoration etc.
1) Lighting Roofing
2) Advertisement light box
3) Carport and awnings.
4) Sound barrier
5) Protective & Police device
6) Indoor partition
7) Indoor ceiling etc
PART 3 MAIN TECHNICAL DATA:
this machine is specially used to produce the polycarbonate universal solid sheets, which is as clear as glass, but the density of PC is only half of glass. and the PC solid sheet is with high impact resistance, which is also called " Unbreakable glass". by changing the three rollers calendars, this line can also produce frosted solid sheets, diffusion solid sheets, embossed solid sheets and anti-scratch solid sheet etc for different applications.
PART 1 SOLID SHEET SPECIFICATIONS:
1) Thickness: 1.8mm-12mm
2) Width range: <= 2,100mm
3) Length: Any dimension.
4) Color: Clear, blue, green, opal, brown, blue green etc.
PART 2 SOLID SHEET APPLICATIONS:
PC solid sheet is easy to be shaped with cold bending, equipment and heat synthesis processing accordingly, which used widely in all kinds of architecture, engineering and decoration etc.
1) Lighting Roofing
2) Advertisement light box
3) Carport and awnings.
4) Sound barrier
5) Protective & Police device
6) Indoor partition
7) Indoor ceiling etc
PART 3 MAIN TECHNICAL DATA:
| Main extruder model | 120/35 | 130/35 |
| Main driving motor power | 185kw | 250kw |
| Co-extruder model | 45/30 | 45/30 |
| Co-extruder driving motor | 11kw | 11kw |
| Sheet width | 1000-1560mm | 1220-2100mm |
| Sheet thickness | 0.8-8mm | 1.5-10-12mm |
| Max capacity | >400kg/h | >600kg/h |
