Brand Name: | Zhuiye |
---|---|
Body Type: | Closed |
Driving Type: | Motorized |
Use For: | Cargo |
Voltage: | 2 V |
Model Number: | Tricycle rear axle with two speed gearbox |
Place of Origin: | China (Mainland) |
Ratio:: | H:2.65 L:5.36 ; H:3.46 L:6.44 |
Speed:: | 2 |
Application:: | UTV/ATV/Tricycle |
Length:: | 1180mm, 1030mm, 1200mm Etc. |
Weight:: | 52KGS/SET |
Quick Details
Specifications

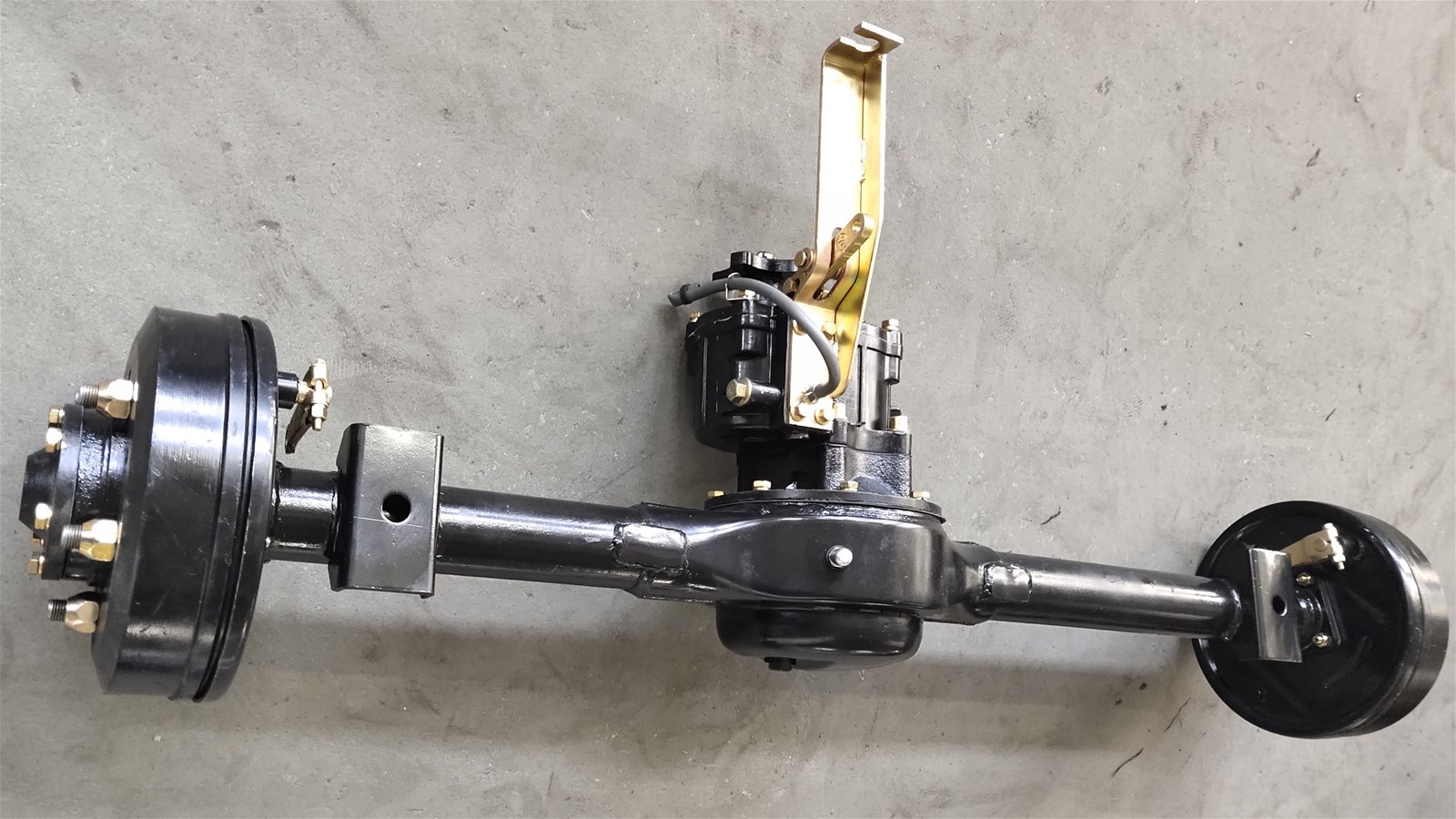

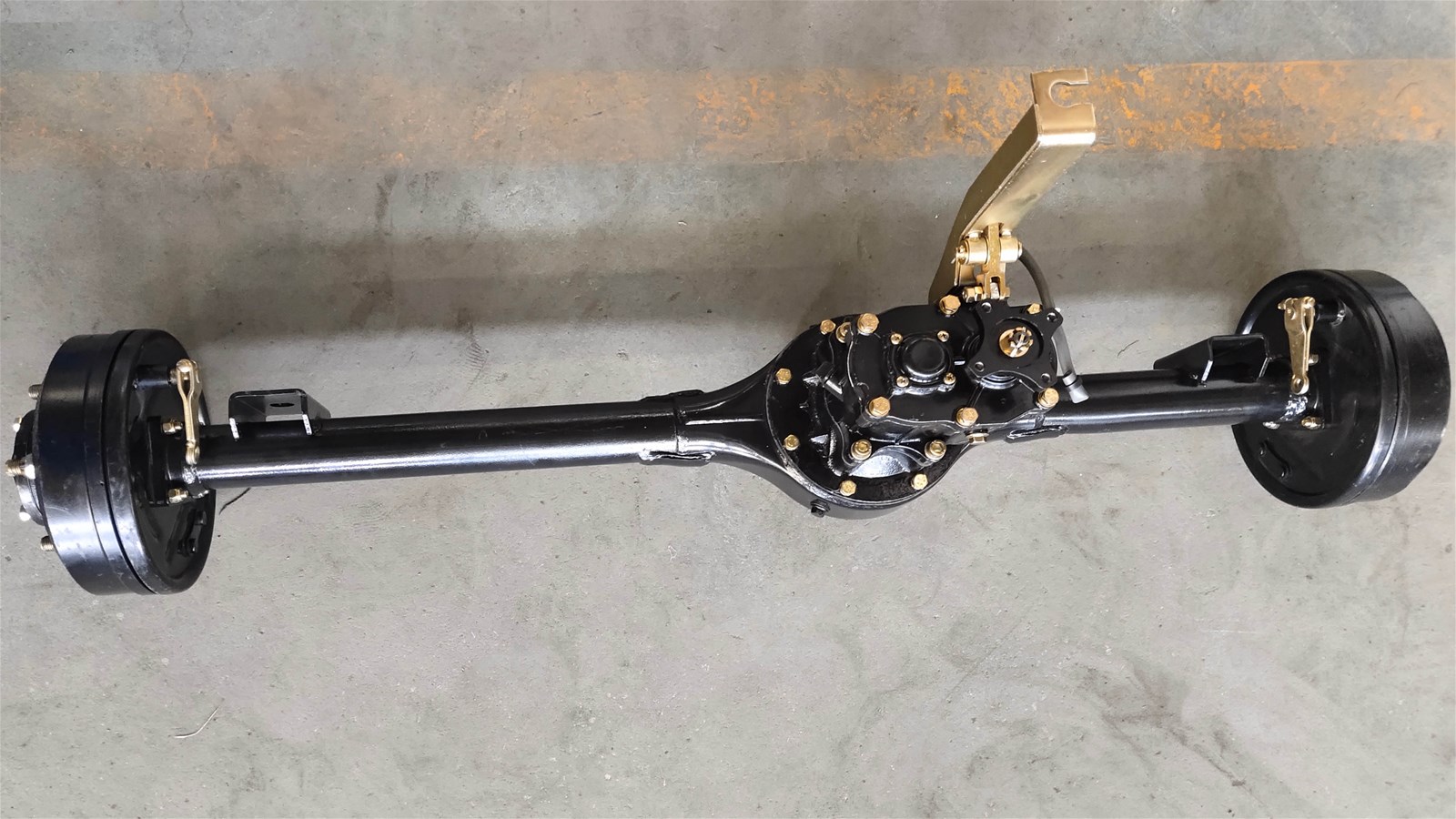

CG200 Loader Tricycle Two Speed Rear Axle with Differential and Mechanical Drum Brake
Tricycle Rear Axle Parameters:Structure |
Full floating |
Loading Bearing |
32009 tapered bearing |
Brake |
Mechanical brake |
Length of rear axle |
1180mm 1150mm etc.(from hub to hub) |
Diff ratio |
H:2.65 L:5.36; H:3.46 L:6.44 |
Input spline |
20*17*4 |
Material |
70*5(GB/T8162-1999 seamless steel tube) |
Body Material |
AL Alloy |
Gear Material |
20CrMnTi |
Gear Modulus |
3.5mm-4.5mm |
Rim lock bolt |
5-M14*1.5 right and left threaded |
Speed |
2 speed |
PCD |
5*140 |
Offset |
120mm |
Delivery |
Within 30days |
Load capacity |
<=2T |
Wheel hub diameter |
220mm |
Net weight |
48kg |
Fit engine |
50cc--400cc |
Application |
Tricycle/rickshaw/small truck |
MOQ |
100 sets |
Brand |
Zhuiye |
Lubrication Oil |
GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil |
Tricycle Rear Axle Introduction:
this tricycle rear axle is a similar design of small car rear axle structure, which is full-floating rear axle for tricycle. Loading bearing is 32009 taper bearing/6008, which can bear more loading and torque. the ratio is available as per customers' requirements. It is largely used in heavy-duty cargo tricycle.
Tricycle gearbox has two gears, of which the low gear can make vehicles get more traction and climbing ability and high gear can ensure the vehicle running speed requirements, improving the vehicle speed range and making the vehicle increase its performance and economy.the fuel consumption is decreased, reaching the "low carbon effect". with the structure of the automobile synchronizer shifting applied, the operation is more comfortable and reliable.
FAQ:
1. Are you manufacturer?
Yes. We are one of leading manufacturers in rear axle design&development.
2. Do you have stock products to sell?
Yes, a few. and we also offer OEM&ODM service. Please send us your drawing.
3. What information needed to get rear axle quotation?
A). Tricycle max loading.
B). Pictures of your rear axle from different views.
C). Packing&Shipping requirements.
D). Quantity needed.
4. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC department until finishing.
Tricycle Rear Axle Shipping&Packing:
Tricycle rear axle can be packed by felt, pallet, felt+pallet, felt+wooden box or any other packing as per your requirements. Tricycle rear axle usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.
