HarshMet Cold Shrink Silicone Rubber Tubing CPS Series
for Electrical, Telecom and Industrial Applications

Description

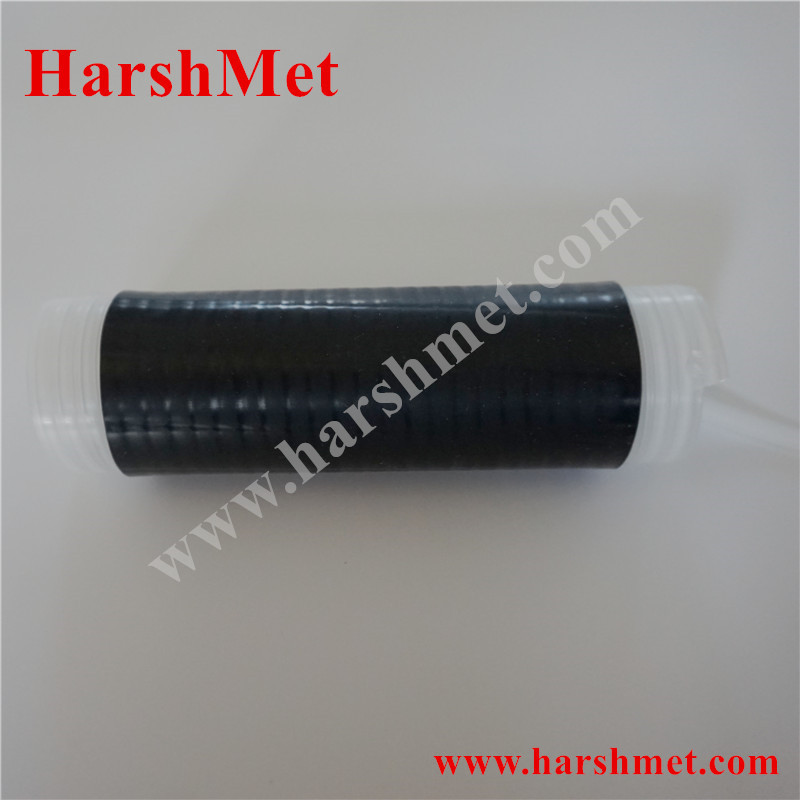

HarshMet cold shrink silicone rubber tubing CPS Series are open-ended, silicone rubber, tubular sleeves. the sleeves are factory expanded and assembled on a removable supporting plastic core. Each rubber assembly is supplied for field installation in this pre-stretched condition. As the core is unwound, the insulating sleeve shrinks to form a tight seal. A wide range of sizes of Cold Shrink tubes cover terminal lug barrels and inline connectors.

Electrical & Mechanical Properties

Properties	Typical Value	Test Method
Hardness	49 Shore A	ASTM D2240
Tensile Strength	8.60 MPa	ASTM D 412-75
Ultimate Elongation	641%	ASTM D 412-75
Die B Tear	1.29 MPa	ASTM D624B
Dielectric Strength	21.9mV/m	ASTM D149
Specific Gravity	1.23	/



Selection Table

P/N	Inside Diameter of Supporting Spiral, MM(D)	Application Range,MM	Recovered   Length ,MM	Material
CPS25-7	25	7.3~21	178	Silicone
CPS25-8	25	7.3~21	203	Silicone
CPS28-5	28	6~25	125	Silicone
CPS28-6	28	6~25	150	Silicone
CPS35-7	35	10.5~30	178	Silicone
CPS35-9	35	10.5~30	229	Silicone
CPS35-10	35	10.5~30	254	Silicone
CPS35-12	35	10.5~30	305	Silicone
CPS41-6	42	12.3~35	150	Silicone
CPS41-8	42	12.3~35	203	Silicone
CPS41-9	42	12.3~35	230	Silicone
CPS41-10	42	12.3~35	254	Silicone
CPS41-12	42	12.3~35	305	Silicone
CPS45-6	45	13.5~39	152	Silicone
CPS45-7	45	13.5~39	178	Silicone
CPS45-8	45	13.5~39	203	Silicone
CPS45-10	45	13.5~39	254	Silicone
CPS45-12	45	13.5~39	305	Silicone
CPS50-6	50	16.6~43	150	Silicone
CPS50-10	50	16.6~43	254	Silicone
CPS50-12	50	16.6~43	305	Silicone
CPS50-18	50	16.6~43	457	Silicone
CPS65-7	65	25-59	180	Silicone
CPS65-7.5	65	25-59	190	Silicone
CPS65-10	65	25-59	254	Silicone
CPS68-5	68	21.9~62	125	Silicone
CPS68-6	68	21.9~62	150	Silicone
CPS68-10	68	21.9~62	254	Silicone
CPS68-14	68	21.9~62	355	Silicone
CPS68-18	68	21.9~62	457	Silicone
CPS68-10	68	21.9~62	508	Silicone
CPS77-6	77	27.5~70	152	Silicone
CPS77-7	77	27.5~70	180	Silicone
CPS77-9	77	27.5~70	229	Silicone
CPS77-12	77	27.5~70	305	Silicone
CPS77-13	77	27.5~70	330	Silicone
CPS77-18	77	27.5~70	457	Silicone
CPS104	104	42~98	152	Silicone
CPS104	104	42~98	203	Silicone
CPS104	104	42~98	229	Silicone
CPS104	104	42~98	254	Silicone
CPS104	104	42~98	305	Silicone
CPS104	104	42~98	457	Silicone
....
