| Brand Name: | HarshMet |
|---|---|
| material: | Stainless Steel |
| Size: | OEM |
| Color: | Steel |
| Materials: | 304 Stainless Steel |
| Model Number: | HG Series |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

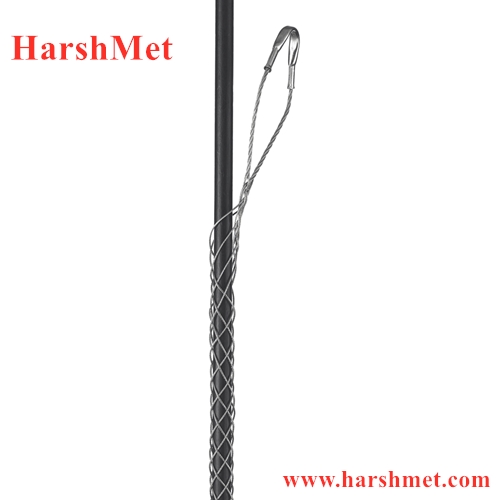

Fiber Optic Cable Grips for Cable Diameter 2.5mm to 25mm
Dual weave design from galvanised wire rope. Used for the installation of fibre optic cables for either overhead or underground applications. Made of galvanised steel or stainless steel
Features and benefits
Dual weave design from galvanised wire rope. Used for the installation of fibre optic cables for either overhead or underground applications. Made of galvanised steel or stainless steel
Features and benefits
- Ranges from 2.5mm to 25mm
- Protective shoulders to prevent abrasion
- Flexible for easy install
| Range (mm) | Lattice Length (mm) | Overall Length (mm) | Approx. Break Load (kg) | HarshMet Part No. |
|---|---|---|---|---|
| 2.5 - 5.6 | 265 | 455 | 431 | Hm2008 |
| 5.3 - 9.2 | 370 | 560 | 748 | Hm2009 |
| 8.1 - 12.5 | 470 | 690 | 998 | Hm2010 |
| 10.7 - 15.8 | 515 | 735 | 1247 | Hm2011 |
| 13.5 - 19.1 | 595 | 815 | 1678 | Hm2012 |
| 16.3 - 22.4 | 645 | 865 | 1928 | Hm2013 |
| 19.1 - 25.5 | 720 | 940 | 1928 | Hm2014 |
