Product Main

Quick Details

Use: Well Drilling
Material: Carbon Steel
Certification: API
Type: Drill Pipe Elevator
Brand Name: Lake
Processing Type: Casting
Machine Type: Drilling Equipment
Place of Origin: China (Mainland)
SIZE: 4 1/2"~7 1/2"
capacity: 250ton

Specifications

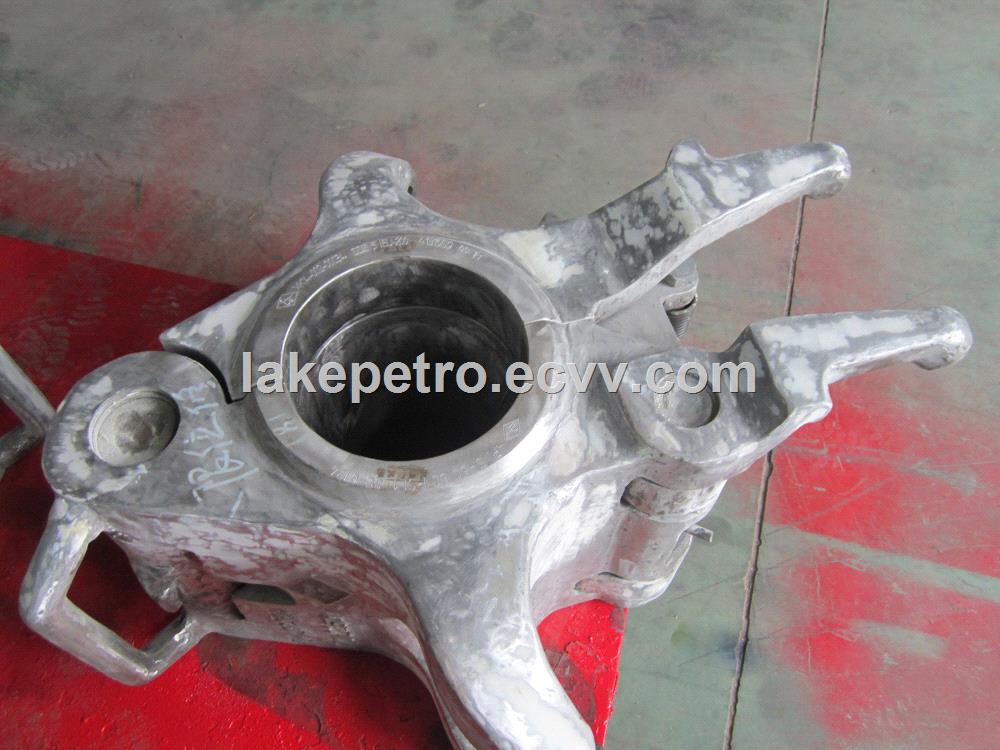

DDZ type Drill Pipe Elevator 250ton

DDZ series elevators are center latch elevator with 18 degree taper shoulder, applied in handling the drilling pipe and drilling tools, etc. the load ranges from 100 tons to 750 dons. the size ranges are from 2 3/8 to 6 5/8. the products shall be designed and manufactured according to the requirements in API Spec 8A/8C
Model
Size(in)
Rated Capacity (short tons)
Remark
DDZ -100
2.3/8-5
100
MG
DDZ -150
2.3/8-5.1/2
150
RG
DDZ -250
2.3/8-5.1/2
250
MGG
DDZ -350
3.1/2-5.7/8
350
GG
DDZ -350TD
3.1/2-5.7/8
350
for Top Drive
DDZ -500
3.1/2-6.5/8
500
HGG
DDZ -500TD
3.1/2-6.5/8
500
for Top Drive
DDZ -750
4-6.5/8
750
for Top Drive
DDZ type Drill Pipe Elevator 250ton
