| Brand Name: | RAVEN NEW ENERGY |
|---|---|
| Certification: | CE |
| Connection Type: | Split |
| Pressure: | Pressurized |
| Type: | Flat-Plate |
| Model Number: | RNE-SPFS-200 |
| Place of Origin: | China (Mainland) |
| Capacity: | 200 |
| Housing Material: | Stainless Steel |
| Installation: | Freestanding |
| Heating System: | Thermosyphon (Passive) |
| Circulation Type: | Indirect / Closed Loop (Active) |
| Model: | RNE-SPFS-200 |
| System type: | split flat panel |
| Tank capacity: | 200liter |
| Solar collector: | flat panel collector |
| Inner tank material: | SUS304 2B, 1.2mm |
| Outer tank material: | Galvanized steel 0.5mm |
| Insulation: | Polyurethane foam 50mm |
Quick Details
Specifications

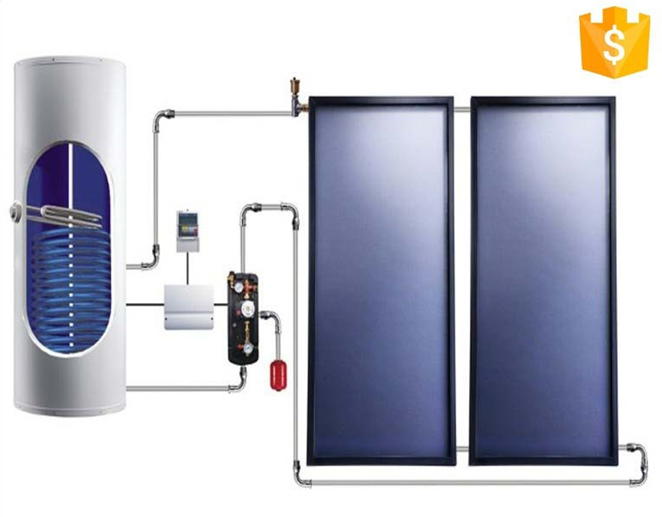

Split pressurized solar hot water heater system with flat plate solar collectors
Component of system:
this system is specially designed for household, villa. It consists of followed parts: flat plate solar collector, storage water tank, solar working station, expansion vessel.
Specialty:
- Collector separate with water tank, system works by pump circulation.
- Automatic controlling system, reliable operation, supply constant water temperature.
- Water tank can put anywhere inside house, avoid gradual rust and last long lifetime.
- Collector can be installed wherever available like balcony, wall, roof etc.,
5. Easy and convenient installation and operation, unified with the building completely.

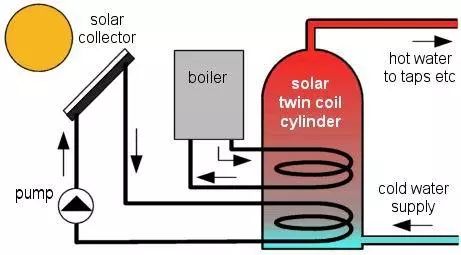

Working Principle:
Adopt the temperature difference circulation, controller operates whole system automatically.
1. Pump will start circulation when temperature difference between collector and water reaches the set value.
2. Pump will stop circulation once the temperature difference lower than set value.
3. the circulation pump makes heat-conducting liquid circulate automatically
4. the heat-conducting liquid transfers heat to the water tank by copper heat exchanger.
5. Assistant heating element will start if hot water does not reach set value.
Storage water tank specification:
Model 100L 200L 300L 400L 500L Inner vessel dia.
(mm)
φ365 φ440 φ480 φ600 φ600 Water tank dimension
(mm)
φ470 φ540 φ600 φ700 φ700 Material & thickness
Inner tank
SUS304-2B /316L
1.2mm
SUS304-2B /316L
1.2mm
SUS304-2B/316L
1.2mm
SUS304-2B/ 316L
1.5mm
SUS304-2B/316L
1.5mm
Material & thickness
Outer tank
Color steel 0.5mm Insulation thickness
PU (mm)
50 50 60 50 50 Heat exchanger
Surface area
Top
(m2)
---- 0.6 0.6 0.8 0.8 Bottom
(m2)
0.7 0.7 0.7 1 1 Rated heating power 1.5KW 2.5KW 2.5KW 2.5KW 2.5KW Overall dimension
(references)(mm)
Φ4701150 Φ5401510 Φ6001840 Φ7001600 Φ7001920 Packing case size(mm) 1230500500 1580590590 1930650650 1590750750 1930750750 Weight(references)(Kg) 33 50 72 102 126
