Brand Name: | OEM |
---|---|
Wavelength: | 800~1700nm |
Data Rate: | Data Rate |
warranty: | ISO,ROHS |
Connector: | 2.5mm+FC, SC (1.25mm adapter for LC sold separately) |
Model Number: | 8618682182825 |
Place of Origin: | China (Mainland) |
Measurement Range: | -70~+10dBm |
USB Data Function: | PC software available Data Function |
Working Temperature: | -4 Fahrenheit (-20 Celsius) to 140 Fahrenheit (60 Celsius) |
Power: | 2 AAA Batteries |
Battery Life: | 60 hours |
Weight: | 0.635 lbs |
Standard Package: | carry bag,user manual,FC,SC connector,USB line &Software |
Quick Details
Specifications
Product Overview

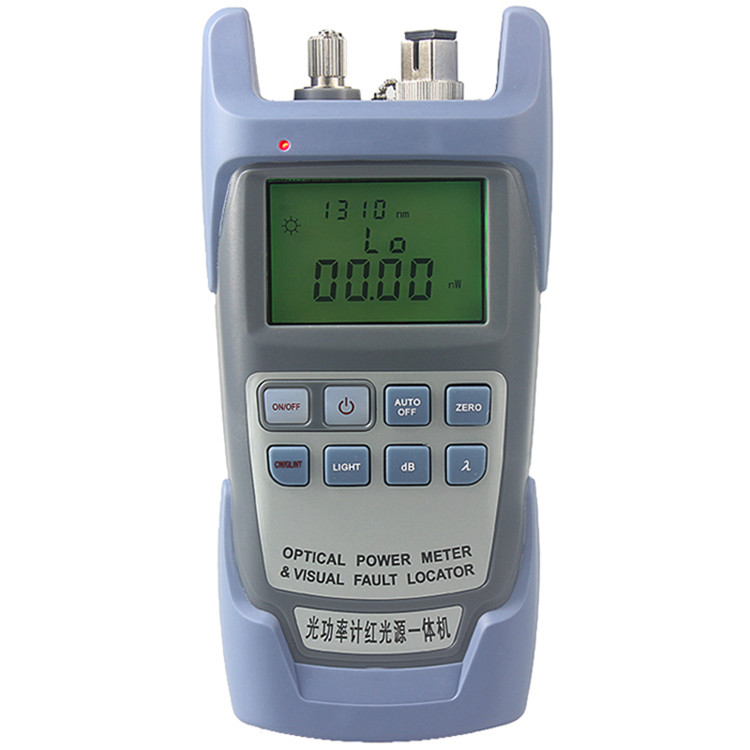

this portable optical power meter with red light source is an accurate portable instrument with long service time specially designed for the installation, operation and maintenance of fiber-optical network. It features fine appearance, controllable backlight display, automatic power off, supper wide testing range for optical power, high accuracy, self-calibration and universal interface. What's more, the linearity index(mW) and nonlinear index (dBm) will be displayed in a same screen. the optical power meter can be used alone for saving power.
Product features
the optical power meter with red light of 10mW or 1mW features open self-calibration which could be operated by the user.
with two AA batteries, the optical power meter can work continuously for 40 hours. It can work continuously if working with a red light source of 10mW, or 42 hours with a red light source of 1mW.
the linearity index(mW) and nonlinear index (dBm) will be displayed on the same screen of the optical power meter.
Special universal interface for FC/SC/ST, easy to transformation.
Optional auto off.
Optional backlight display.
Optional steady/flashing red light.
Technical parameters of the optical power meter with red light source
Measurable range |
-70~+10dbm | |||
Probe type |
InGaAs | |||
Wavelength range |
800~1700nm | |||
Standard wavelength(nm) |
850,980,1300,1310,1490,1550,1625 | |||
Display resolution |
Linear display: 0.1% logarithmic display: 0.01dBm | |||
Working temperature(℃) |
-10~+60℃ | |||
Storage temperature(℃) |
-25~+70℃ | |||
Time for auto off(min) |
10 minutes | |||
Continuous working time with batteries |
No less than 40 hours | |||
Boundary dimension(mm) |
1808328 | |||
Power supply |
Two chargeable lithium battery or AA alkaline battery | |||
Weight(g) |
210g | |||
Suffix of the model |
&1 |
&10 | ||
Output power of the red light |
>1mW |
>10mW | ||
Output wavelength of the red light |
650nm | |||
Optical fiber adapter of the red light |
Universal adapter | |||
Service life of the battery |
>42 hours |
>13 hours |
>10 hours | |
Functions of Keys
Function |
Key |
Increase 0.05 |
Light |
Decrease 0.05 |
dB |
Save |
Zero |
Switch wavelength |
λ |
Recover factory settings |
λ+Zero |
Remarks: if there is any error during self-calibration or operation, press λ and Zero at the same time under user mode to recover factory settings. the power of red light resource is fixed. When the ceramic core is worn or broken, please replace it by yourself.
Specifications:
Optical Power Meter |
Detector Type |
InGaAs |
Optical Connector |
ST/SC/FC & 2.5mm Universal | |
Calibrated Wavelengths |
850,1300,1310,1490,1550,1625 nm | |
Measurement Range |
+6 ~ -70 dBm | |
Accuracy |
±0.2 dB | |
Power Measurement Linearity |
±0.1 dB | |
Display Resolution |
±0.01 dB | |
Power Display Units |
DBm,mW,uW | |
Visual Fault Locator |
Output power |
1mw/10MW/20mw/30mw |
Range |
12-km@SM | |
Connector |
ST/SC/FC & 2.5mm Universal | |
Laser safety rating |
Class 2 | |
Wavelength |
650nm±20nm | |
Output modes |
Continuous (CW),2 Hz pulsed | |
Reverse battery protection |
Yes | |
Others |
Power Supply |
18650mAh Li-con battery |
Auto off |
10 minutes | |
Working time |
>200hours(only OPM Work) ≥50 hours(10mWVFL & OPM Work meanwhile) | |
Working Temperature |
-10~+45 | |
Weight |
250g | |
Dimensions |
160x75x10mm |
