Product description:

the lodging of maize, sorghum and tobacco has caused insufficient illumination, and in turn enormously limited crop yields for a long time. Meanwhile, it has also caused great difficulties in crop mechanized harvesting, thus a lot of grains have been wasted. this instrument can test plant stem strength, and it applies to genetic breeding in agriculture as well.



Features:

1. Data can be shown on a big LCD with screen rotation function;

2. the instrument can be connected to computer for trial test, data downloading, printing and analysis. Several parameters such as input speed, area can be converted to displacement and pressure, respectively;

3. the instrument is equipped with various kinds of platens for convenient measurement;

4. It is easy to use, time saving, and of high precision;

5. the instrument can show remaining battery life and it can automatically power off when battery life is low.

6. the instrument is equipped with spiral test platform, ladder-shaped screw rod and hand wheel for easy and steady operation.



Technical Parameters:

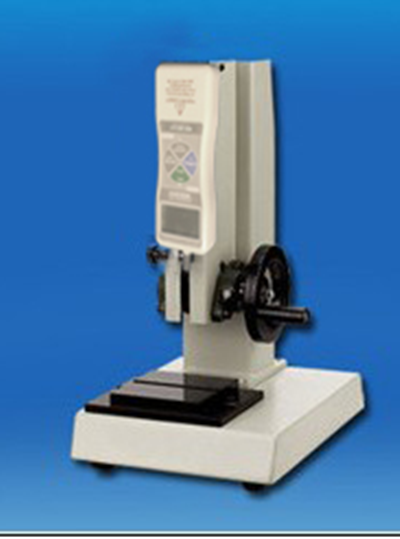

  Model: QT-DFB01

  Maximum load: 500N

  Measure units: Kgf/lb/N

  Precision: +/-0.2%F.S,+/-digit

  Display: 4-digit LCD display

  Measuring value: Peak and current value, peak value can be maintained

  Collecting rate: 1000 times/s

  D/A conversion: 16-bittype

  Processor: 8-bit CPU

  Working temperature: -20℃ to 40℃

  Power: NI-MH battery or external AC linear power adapter or USB power supply

  Data output: USB

  Auto power shutdown: 10 minutes without operations

  Battery alarm: Battery icon will flicker when battery life is low.

  Weight: 30 Kg

Made in China
