Quick Details

Brand Name: Zhuiye
Body Type: Closed
Driving Type: Motorized
Use For: Cargo
Voltage: 2 V
Model Number: 110-V Reverse Gearbox
Place of Origin: China (Mainland)
Ratio:: 11/14
Gear Modulus:: 4MM
Driving Gear Bearing:: 6205
Application:: Tricycle/Rickshaw/ATV

Specifications

Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle
110-V Reverse Gearbox Parameters:
Ratio 11/14
Power Input Spline 17*14*4
Power Output Spline 20*17*4
Driving Gear Bearing 6205
Gear Material 20CrMnTi
Body Material Al Alloy (ADC-12)
Lubrication Oil GL-5 85w/90 or GL-5 80w/90
Gear Modulus 4MM
Application Tricycle/Rickshaw/ATV
Packing(pcs/ctn) 5pcs/ctn
Carton Size 400MM*400MM*145MM
Fit Engine 110CC
Brand ZHUIYE
Color Silver White
Shaft Coupling No Cross
Gear Shifting Pedal
Engine Coupling Normal Steel Sheet
Oil Capacity 80ml
Driving Gear Oil Seal 25*40*52 double lip seal
G.W.(kgs/ctn) 15kgs/ctn
Packaging Carton, Pallet etc.

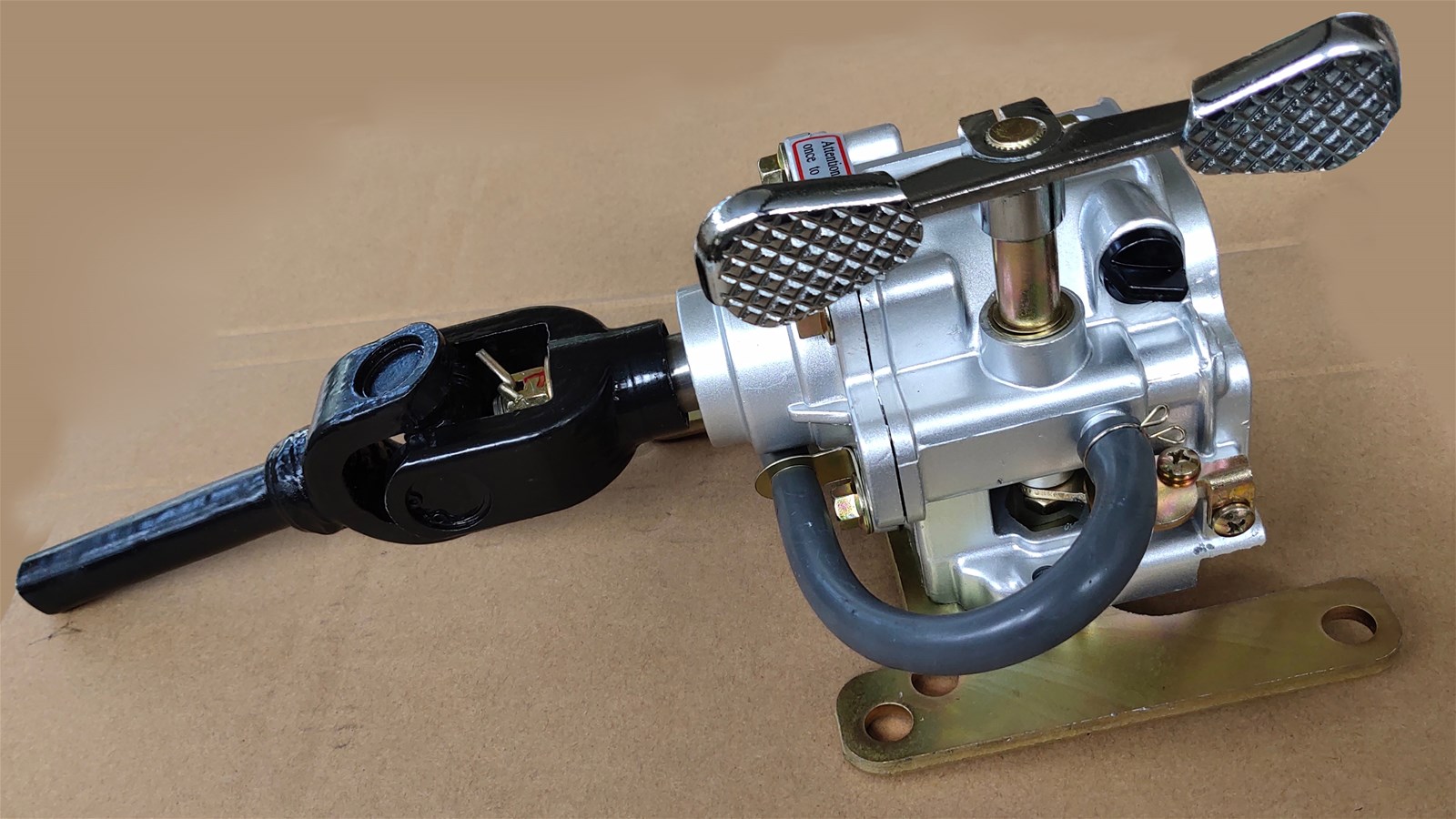

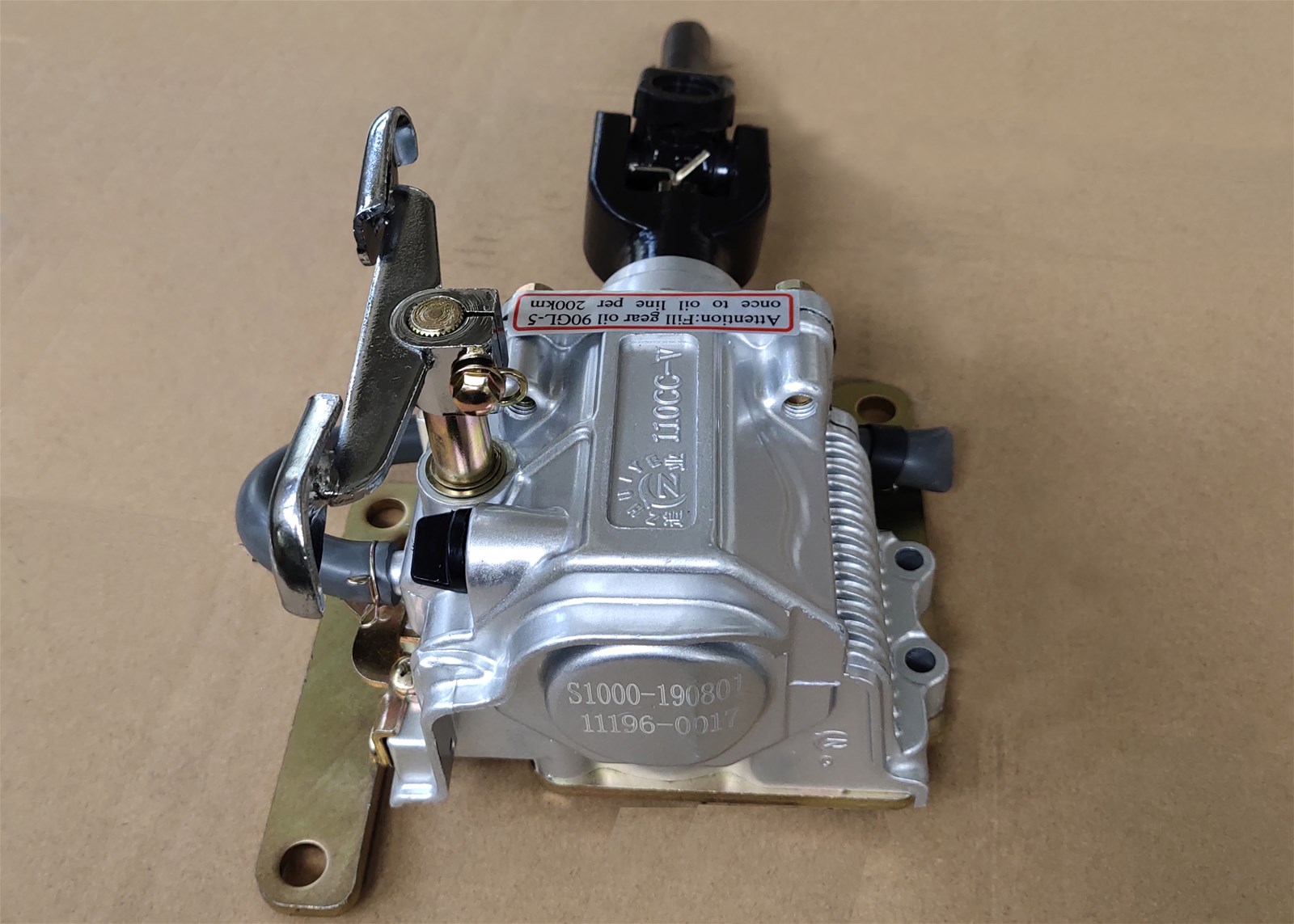

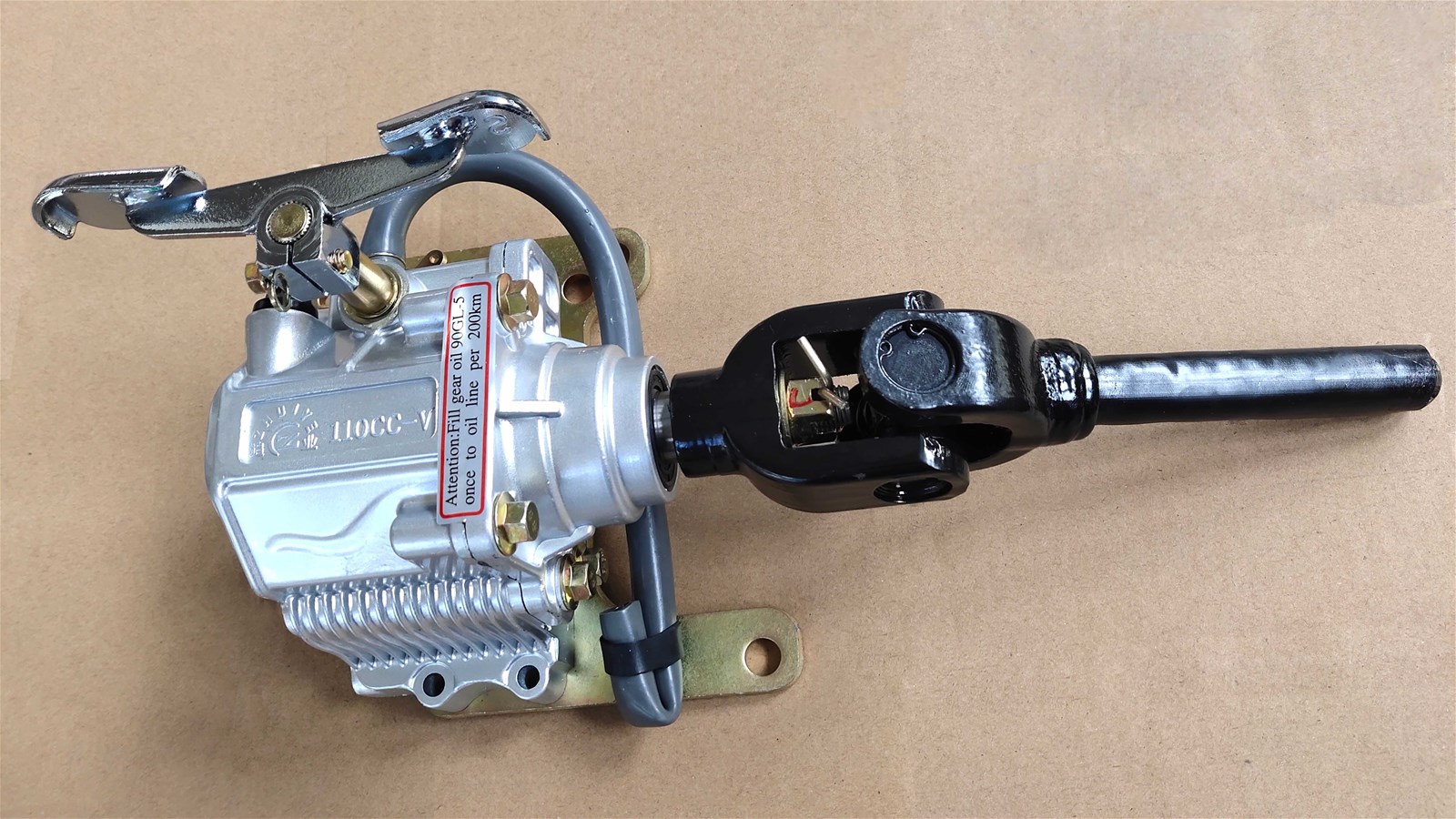

110-V Reverse Gearbox Introduction:
1. 110-V reverse gearbox is designed for 100-110cc engine, applying 6205 bearing on driving gear, more loading capacity, more liable and wearable.
2. Fine and wearable oriented design, the housing appearance is beautiful, fashion, and rewarded with appearance design patent. Lubrication system is improved further by enlarging oil housing.
3. the design of enlarged crap groove allows the reverse gearbox to store more crap and keep lubrication environment clean.
4. Applying new sealing technology on gear shifting case brings brief, beautiful look and better sealing.
Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler MotorcycleTricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle
Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle

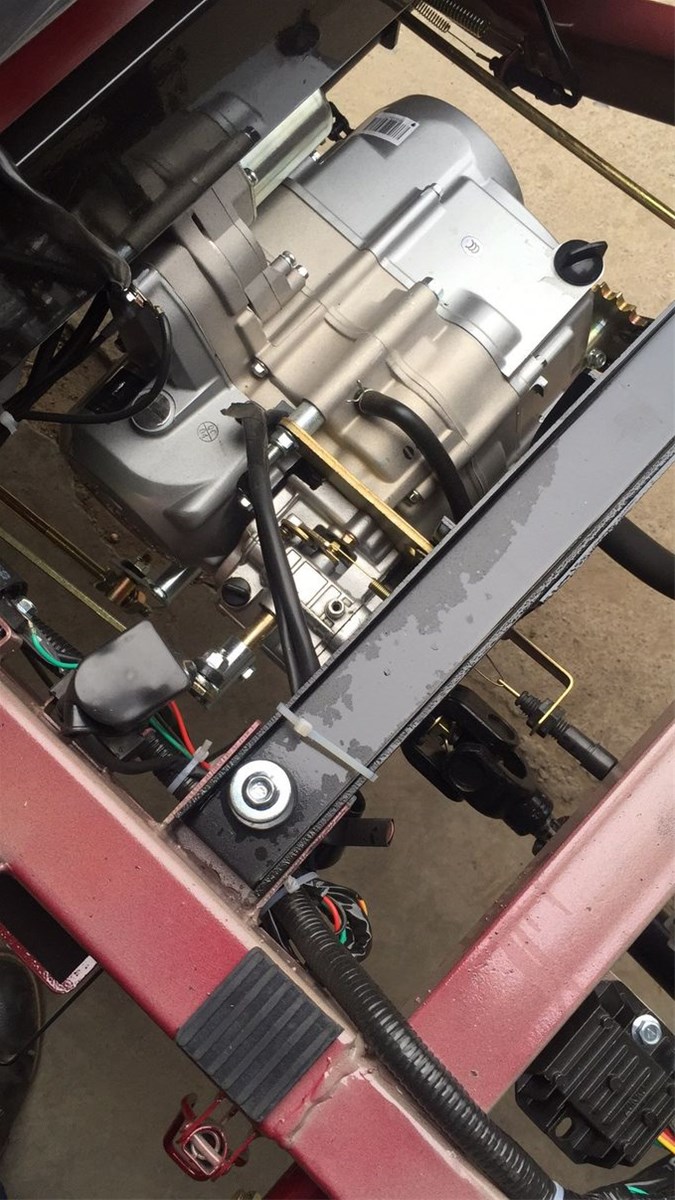

110-V Reverse Gearbox Installation:
Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle

110-V Reverse Gearbox Packing&Shipping:
Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle
110-V reverse gearbox can be packed by carton(one gearbox carton or 4--5 gearboxes in one carton), carton+woven bag, carton+pallet, carton+wooden box or any other packing as per your requirements. 110-V reverse gearbox usually chooses containerized sea shipping in quantity delivery or air delivery in sample orders.

Reverse Gearbox History:
     Mr Xianyou Wu, founder of company, designed and developed reverse gearbox in 1998, changing tricycle chain drive system to propeller drive one. since the found of company in 1998, reverse gearbox has been renewed for many times, becomeing lighter and sronger, like an art. however, we have been keeping working to devote ourselves to the great career of tricycle development.
Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle

FAQ:
1. Are you manufacturer?
Yes. We are one of leading manufacturers in reverse gearbox design&development.
2. Do you have stock products to sell?
Yes, a few. and we also offer OEM&ODM service. Please send us your drawing.
3. What information needed to get reverse gearbox quotation?
A). the model and displacement of your tricycle engine.
B). Pictures of your revese gearbox from different views.
C). Packing&Shipping requirements.
D). Quantity needed.
4. Do you inspect the finished products?
Yes. Each step of production will be carried out inspection by QC department until finishing.

Company introduction:
     Chongqing Xianyou Technology Development Co., Ltd. Was founded on 26 Nov., 1998, lied in No.6 Dongshan Road, Area B Jiulongpo Inustrial Zone, Chongqing City, China.
     Registered with RMB 35 millions, it's a private owned High-tech company. Covering an area of 20000 square meters, transportation is convenienct with topographical advantages, close to highway.
     We're specialized in design and developing and sale of  mini car, motorcycle transmission, reverse gearbox, differential, booster, rear axle and all kinds of spiral bevel gear. In addtion, we also supply EV driving system-electric motor & controller, electric gearbox, electric rear axle, and even electric trolley, tricycle.
Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle
Tricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler MotorcycleTricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler MotorcycleTricycle Engine Spare Parts Auto Rickshaw Reversing Gear for 110CC Three Wheeler Motorcycle

Our main products:
     We mainly supply reverse gearbox, differential, booster, rear axle, crown & pinion, and EV driving system-electric motor & controller, electric gearbox, electric rear axle, and even electric trolley, tricycle.
