LSG-1800BCCD Goniospectroradiometer is high Precision automatic goniophotometric instrument for luminous intensity Distribution measurements with facility for turning the light source. the LSG-1800BCCD can do the spatial CCT test when do the intensity distribution Test. It is for industrial laboratory measurements the Photometric data of luminaires such as LED luminaries, HID lamps, fluorescent Lamps and so on.

Measurement:

Luminous Intensity Data, Luminous Intensity Distribution, Zonal Luminous Flux, Luminaries Efficiency, Luminance Distribution, Coefficient of Utilization, Luminance Limitation Curves Glare, Maximum Ratio of Distance to Height, Equal Illuminance Diagrams, Curves of Luminaires VS Lighting Area, Isocandela Diagrams, Efficient Luminescence Angle, EEI, UGR, CCT, CRI, Color Temperature Distribution, Spectrum, (x, y)/(u, v) and etc.

Specification:

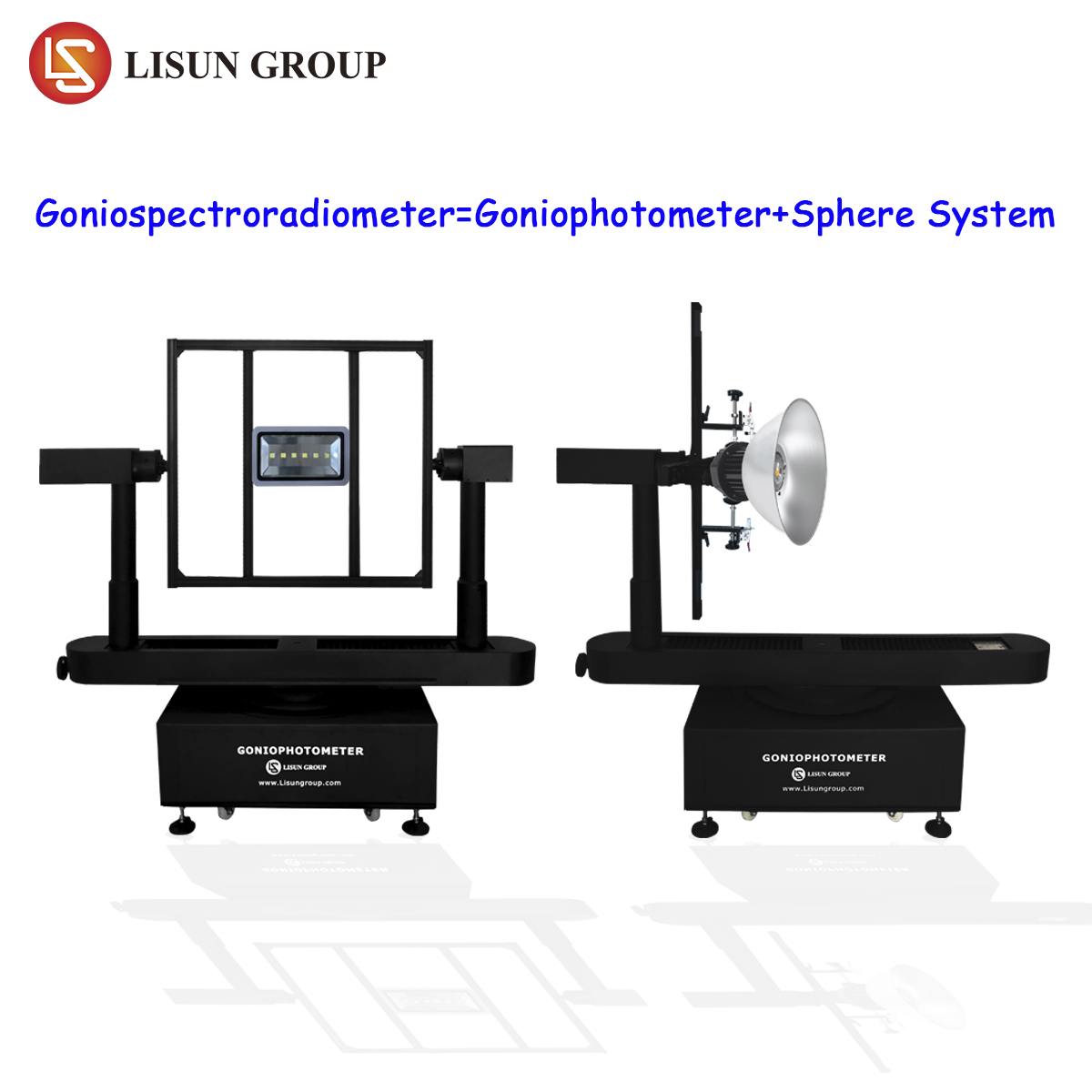

LSG-1800BCCD Goniospectroradiometer= +

the Europe classical goniophotometer Which is fully meet EN13032-1 clause 6.1.1.3 goniophotometer type 1.

the goniophotometer can Do the B-β test with two pillars and C-γ test with single pillar & multi-function jigs

the accuracy of angle: 0.1° (LSG-1800XCCD/LSG-1800BCCD) and 0.2° (LSG-1700BCCD)

Work with High Accuracy and quick CCD Spectraidomeeter to measure spatial color parameters.

Accuracy of chromaticity coordinate: ±0.0005 (under standard A lamp)

Spectral Range Wavelength: 380nm ~780nm; Accuracy of wavelength: ±0.5nm

Accuracy of : CIE Class A (Class L is for option)

Connect to PC via USB, English version Software can be run in Win7, Win8 or Win10

the test result can be exported as CIE, IES, LDT and other format files. this kind of format files can be transferred by other illumination and luminaire design software such as DiaLux

Max Size for the Testing Lamp (mm)	the Max Size for the Testing Lamp		Max Weight
	Non-Flood Lamp Diameter*Depth	Flood Lamp (L*M)
LSG-1800XCCD	Φ 2500*550mm	700*600mm	60Kg
LSG-1800BCCD	Φ 1600*550mm	700*600mm	50Kg
LSG-1700BCCD	Φ 1600*580mm	700*600mm	30Kg
