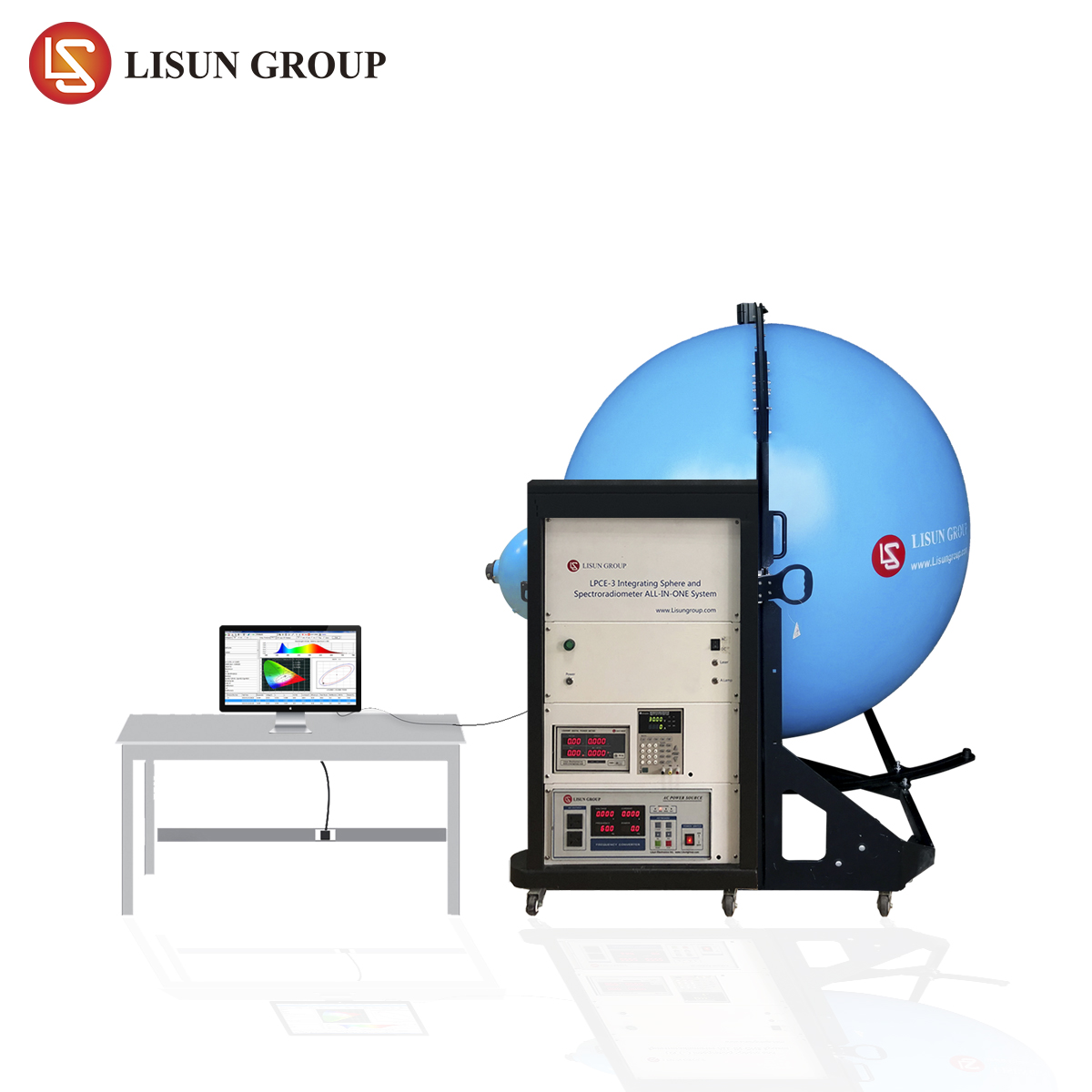

LPCE-3 is a CCD Spectroradiometer Integrating Sphere Compact System for LED Testing. It is suitable for photometric and Colorimetric measurement of luminaries such as LEDs, LED luminaires, Energy-saving Lamps, Fluorescent lamps, HID lamps (high voltage sodium lamps and high voltage mercury lamps) and CCFL. the measured data meets the Requirements of CIE, EN and LM-79 clause 9.1 for the measurement of photometry and colorimetry.

System Configuration:
 (LMS-7000),  (CFO-1.5M),  (LS2008R),  (DC-S Series),  (LSP-500VAS),  (IS-1.5MA-CASE and IS-0.3M),(SLS-50W and SLS-10W)

Measures:
Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth, Dominant Wavelength, Color Purity, CRI, Spectrum Test
Photometric: Luminous Flux, Luminous Efficiency, Radiant Power
Electrical: Voltage, Current, Power, Power Factor

Specification:
Spectral Range Wavelength: 380nm~800nm (200~1050nm can be option)
Spectral Wavelength Accuracy: ±0.5nm  Wavelength Reproducibility: ±0.5nm
Sample Scanning Steps: ±0.1nm
Accuracy of Chromaticity Coordinate (x, y): ±0.003
Correlated Color Temperature CCT: 1,500K~25,000K. CCT Accuracy: ±0.5%
Color Rendering Index Range: 0~100.0, Accuracy: ± (0.3%rd±0.3)
Photometric linear: ±0.5%
Stray light: <0.015% (600nm) and <0.03% (435nm)
Time of integration: 0.1mS~20S
