External Size: | 152*75*114 |
---|---|
Type: | Distribution Box |
Protection Level: | IP55 |
Brand Name: | LISUN |
Color: | White |
Model Number: | YWX/Q-010 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications

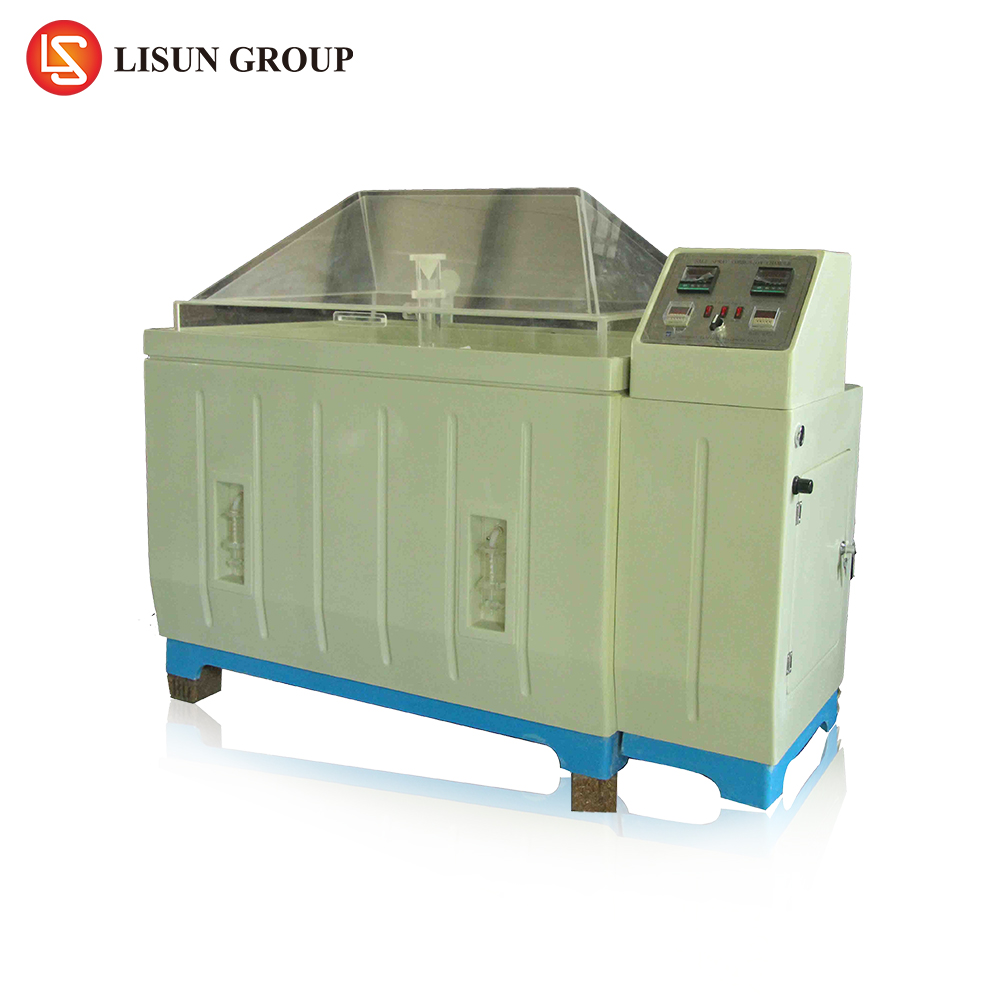

the Salt Spray Test Chamber is applicable to the Salt spray corrosive test for the protection layer of components, parts, Electronic and electrical parts and metal materials and industrial products.
Model |
Work Room Size (mm) |
Exterior Size (mm) |
Voltage |
Power (KW) |
YWX/Q-150 |
600x450x400 |
1100x750x930 |
1Phase/220V |
2 |
YWX/Q-250 |
900x600x500 |
1500x900x1150 |
1Phase/220V |
2.5 |
YWX/Q-750 |
1100x750x500 |
1700x1050x1150 |
1Phase/220V |
3.5 |
YWX/Q-010 |
1200x800x500 |
1800x1100x1200 |
1Phase/220V |
3.5 |
YWX/Q-016 |
1600x900x600 |
2300x1300x1300 |
3Phase/380V |
5 |
YWX/Q-020 |
2000x1000x600 |
2700x1400x1500 |
3Phase/380V |
7.5 |
Specifications:
the Salt Spray Test Machine is made of transparent materials so that the
Operator can see the tested sample in it and the spraying situation of the
Tested sample.
A waterproof structure is adopted between the chamber cover and chamber body,
Thus there is no salt spray overflow.
Adopts the tower spraying system and equipped with the salt solution filter
System and non-crystal nozzle so as to realize even salt spray distribution and
Freely adjustable settlement.
It meets the following standards: IEC60068-2-11 (GB/T2423.17), GB/T10125,
ISO9227, ASTM-B117, GB/T2423-18, IEC 60068-2-52, ASTM-B368, MIL-STD-202,
EIA-364-26, ASTM-B117, GJB150, DIN50021-75, ISO3768, 3769, 3770; CNS 3627,
3885, 4159, 7669 etc.
