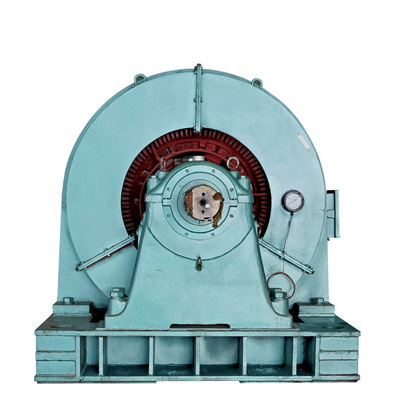

TDMK three-phase High Voltage electric motor


TDMK series motor rated voltage is 6000V but also the voltage can be as customer requires such as 3000V,10000V.the allowed voltage warp is ±5%.Rated frequency is 50hz,rated power factor is 0.9(leading).
the rotation direction of TDMK motor can be clockwise also anti-clockwise seeing from slip ring side.
When the motor is coupling the milling machine,the DE end of the motor can not suffer the axial force or radial force in addition.TDMK series motor starting method is full voltage starting.If the power is not enough,the motor can start with reduced voltage properly.the starting current and the starting torque will be lower as while.
Stator out cables:6 lines(U1,V1,W1,U2,V2,W2)
Sat sleeve bearing:oil ring bearing or multiplex bearing.There us a rubber pads between bearing and the motor frame to avoid the shaft current.
Rated voltage:6000V
Power range:0.9
Rated frequency:50Hz
Please contact us at 86-18191654119.
