| Brand Name: | Zhuiye |
|---|---|
| Body Type: | Closed |
| Driving Type: | Motorized |
| Use For: | Cargo |
| Voltage: | 2 V |
Quick Details
Specifications

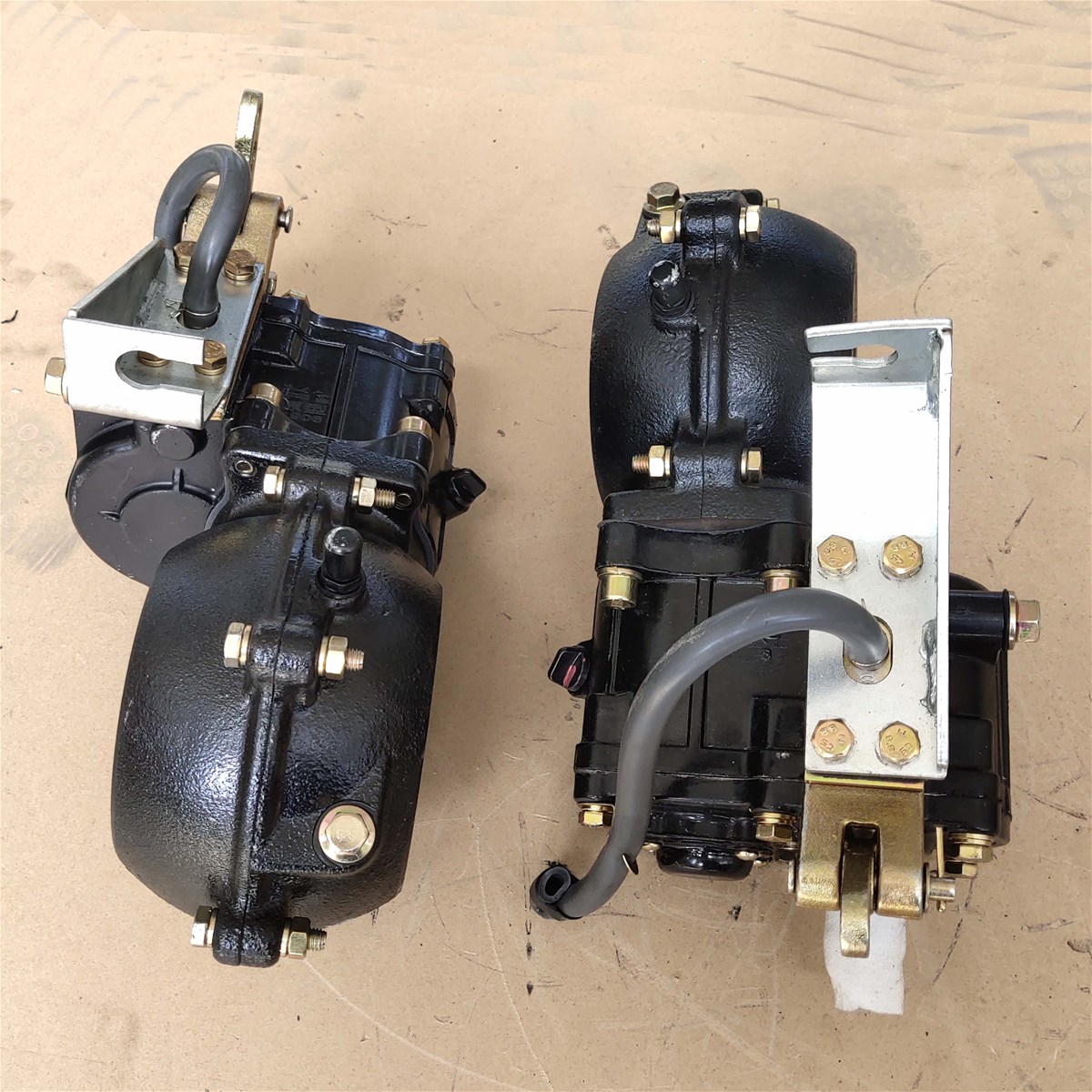

Three Wheeler Chassis Parts, Two Speed Driving Rear Axle Gearbox
Tricycle Gearbox Parameters
Tricycle Gearbox Introduction
1. Tricycle gearbox is installed on the rear axle tube directly.
2. Tricycle gearbox has two gears, of which the low gear can make vehicles get more traction and climbing ability and high gear can ensure the vehicle running speed requirements, improving the vehicle speed range and making the vehicle increase its performance and economy.
3. the fuel consumption is decreased, reaching the "low carbon effect".
4. with the structure of the automobile synchronizer shifting applied, the operation is more comfortable and reliable.
Tricycle Gearbox Parameters
Ratio |
H:2.65 L:5.36; H:3.46 L:6.44 |
Power Input Spline |
20*17*4*6 |
Power Output Spline |
25*21*5*6 |
Gear Material |
20CrMnTi |
Loading |
≤1.5T |
Gear modulus |
3.5--4mm |
Housing Material |
Al Alloy |
Packaging |
Carton, wooden case etc. |
Spline |
Rectangle |
Speed |
2 |
Brand |
Zhuiye |
Packing (pcs/ctn) |
1pcs/ctn |
G.W. (kgs/ctn) |
15kgs/ctn |
Fit engine |
50--400cc |
Carton size |
370*220*210mm3 |
Application |
Tricycle/Rickshaw/ATV |
Lubrication Oil |
GL-5 85w/90 gear oil, winter GL-5 80w/90 gear oil |
Tricycle Gearbox Introduction
1. Tricycle gearbox is installed on the rear axle tube directly.
2. Tricycle gearbox has two gears, of which the low gear can make vehicles get more traction and climbing ability and high gear can ensure the vehicle running speed requirements, improving the vehicle speed range and making the vehicle increase its performance and economy.
3. the fuel consumption is decreased, reaching the "low carbon effect".
4. with the structure of the automobile synchronizer shifting applied, the operation is more comfortable and reliable.
