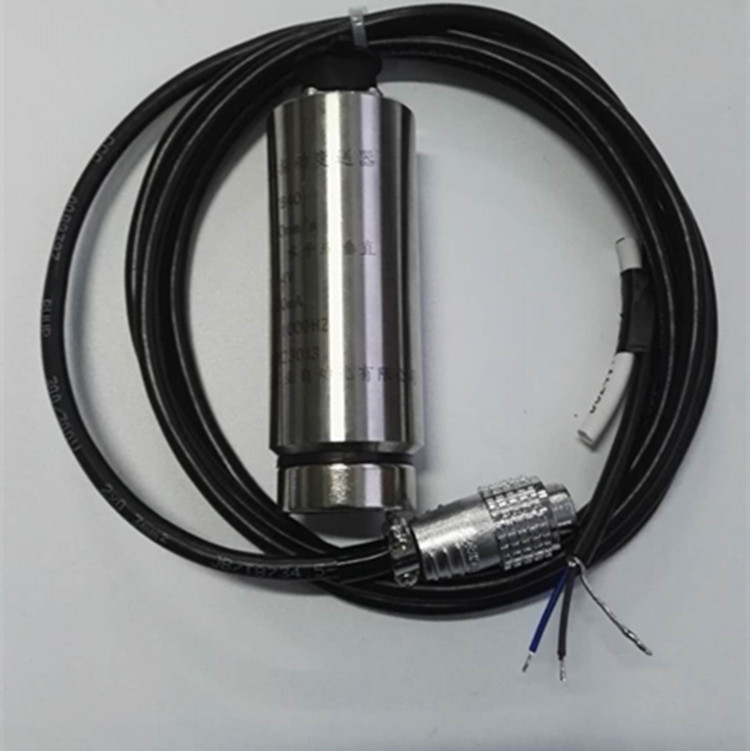

YKT-YB40 vibration transmitter combined vibration sensor and transmission module together.It is for real-time monitoring of vibration of rotating mechanical bearings, also known as integrated vibration sensor. It integrates the vibration sensor and the signal conditioning circuit. It can directly convert the collected vibration signal into a 4~20mA current signal or the RS485 digital output, then transmit to control system.

It is widely used in bearing vibration measurement and real-time monitoring of rotary machinery such as submersible pumps, pumps, fans, steam turbines, coal mills, oxygen generators, generators, centrifuges, compressors, motors, etc. It can also be applied to low-frequency vibration measurement of the impact of environmental vibration values on equipment such as underground pipelines, and automotive industry.

Technical Specs:
Input: +DC24V
Measuring range: 010/20*/50/100mm/s or  0100/200*/500/1000um
Output: 4-20mA (or 1-5V/1-10V or RS485)
Output Impedance: <500Ω
Frequency Response: 10Hz1OOOHz
Max acceleration: 10g
Accuracy: <F.S±3%
Measurement Direction: vertical or horizontal
Working temperature: -40℃85℃
Wiring: 2 wire or 3 wire
Mounting thread: M101.510mm or M8*1.25*10mm
Shell material: 304 stainless steel
Size/Weight: φ3373mm, about 350g
Output way: two-wire (one for +24VDC power supply and one for 4-20mA output)
Available cable: 1m, 2m, 5m
