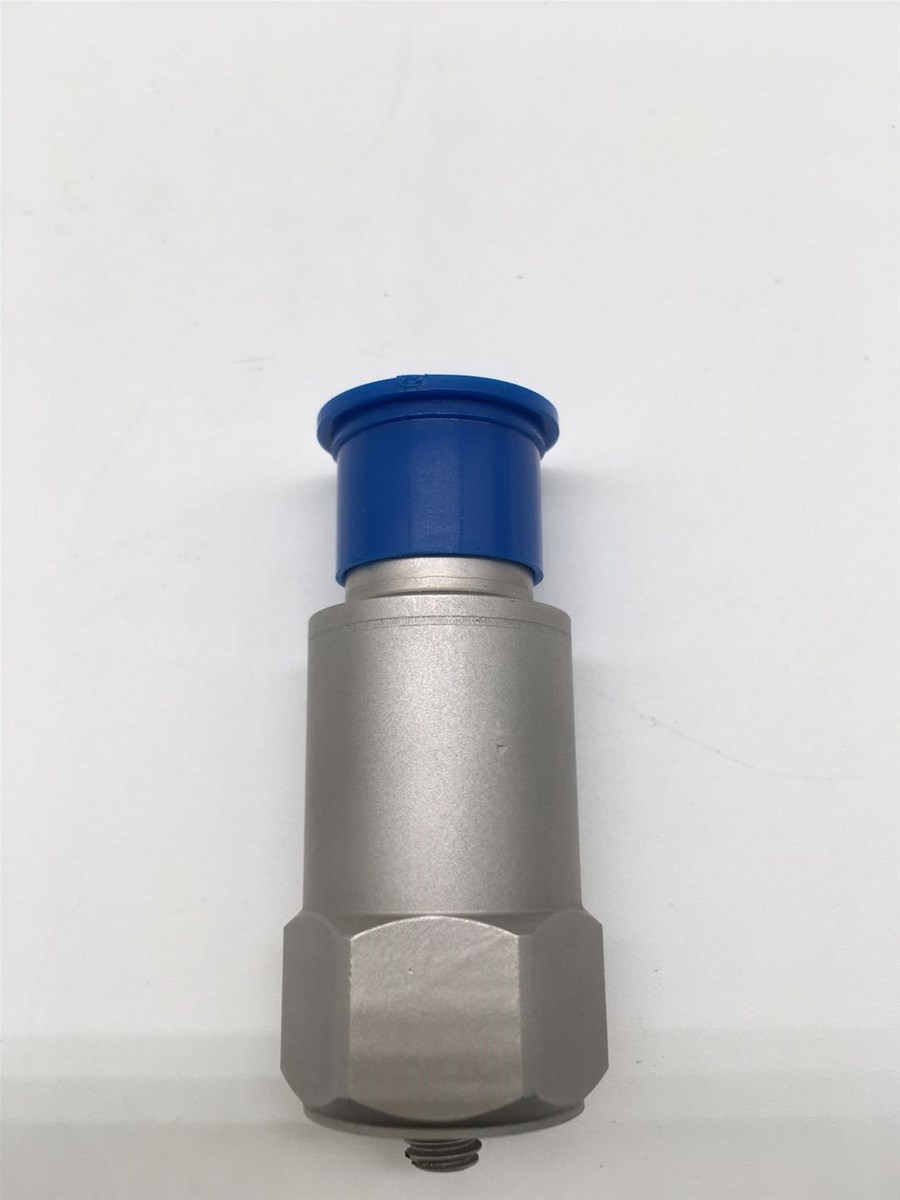

YK-YD20 piezoelectric vibration sensor is widely used in bearing vibration measurement and real-time monitoring of rotary machinery such as submersible pumps, pumps, fans, steam turbines, coal mills, oxygen generators, generators, centrifuges, compressors, motors, etc. It can also be applied to low-frequency vibration measurement of the impact of environmental vibration values on equipment such as underground pipelines, and automotive industry.


Technical Parameters:
Input: DC 15-36V
Measuring Range: 0-10mm/s (+-5%)
Output: 4-20 mA
Frequency Range: 4-2000Hz
Maximum Shock Level: 2000g
Working temperature: -40℃85℃
Output: two-wire(can transfer to Eurocon M12 plug, 4-pole Male connector with 200mm wire)
Sealing: Laser Welding
Weight: 130g
Size: φ2254mm
Case material: 304 stainless steel
Mounting method: M8
