| Brand Name: | KDS |
|---|---|
| Accuracy: | 0.2%,0.4% |
| Charging time: | 0 |
| Sensor structure: | Silicon piezoresistance |
| Peak load: | 1.2 |
| Model Number: | DPG280 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
DPG280 Digital Pressure Gauge is portable, field digital gauge. with Advanced microprocessor technology and state-of the-art silicon pressure Sensors,DPG280 test gauges provide a reliable economic solution for pressure Application in the industries of power,chemical,petrol, oil&gas Metallurgy,metering,etc. Every DPG280 Digital pressure gauge passes the high and Lower temperature aging, so it could assure the products more accurate and Reliable.
Features:
U Pressure range to 1000bar
U Accuracy: 0.4%F.S, 0.2%FS
U 4 bits big LCD display with Back light,
U 304 Stainless Steel housing
U Pressure units Available (Mpa, bar, kgf, mH2O, PSI, KPA, mmHg, torr, mBAR, cmH2O, Pa);
U Zero clearing, on/off Button,
U Low voltage alarm,
U Maximun and minimum Function, Pressure percentage display
U Dry-Battery-powered,low Power design keeping it work more than 12 months
U Connection :1/4NPT,1/2NPT,G1/4,G1/2
U
SPECIFICATION:
Range |
Vacuum range: (0~-100) kPa 0-100kPa (absolute pressure) 0-250kPa (absolute pressure) 0-400kPa (absolute pressure) 0-1.0MPa (absolute pressure) Compound Range: (-0.1~0.1)MPa (-0.1~0.25)MPa (-0.1~0.4)MPa (-0.1~0.6)MPa (-0.1~1.0)MPa (-0.1~2.5)MPa (-2.5~2.5 ) (-5~5) kPa (-10~10) kPa (-25~25) kPa (-50~50) kPa Micro pressure Range: (0~2) kPa (0~5) kPa (0~10) kPa (0~25) kPa (0~50) kPa (0~100) kPa Conventional Range: (0~160) kPa (0~250) kPa (0~400) kPa (0~600) kPa (0~1) MPa (0~1.6) MPa ... (0~60) MPa High Pressure range: (0~100) MPa (0~160) MPa |
over Pressure |
Range≥10Mpa 150%; Range<10Mpa 200% |
Acc. |
±0.4%FS, ±0.2%FS |

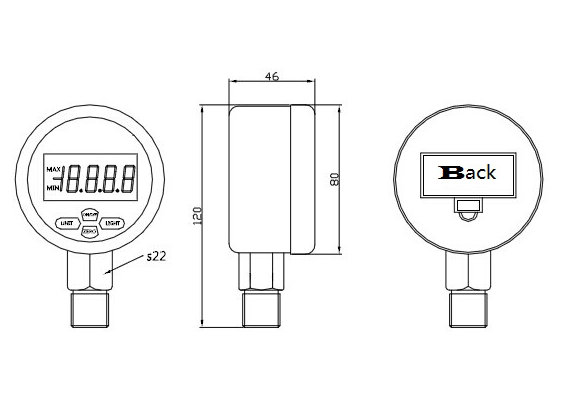

Size |
80mm, 60mm,100mm (optional ) |
Temperature compensation |
1030℃ |
Supply |
3V(2 batteries of AAA) |
IP rating |
IP65 |
Peak values |
Max,min |
Display updated rate |
5 times/second ( or according to client's demand) |
Measurement Medium |
Gas, water, oil |
Pressure Connection |
M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
Connector Material |
304SS |
Housing Material |
304SS |
Electric Protection |
Reverse protection, anti-electromagnetic interference |
