ZMUX-3036ES is interface modular design, and supports very flexible configuration, according to the customers' requirement. the business interface module is a single card, to meet the needs of customers. It has 1 channel fiber interface and 1 channel E1 interface, 1+1 back up protection and with network management function

It adopts 1U height standard 19inch rack mountable case, easy to install and maintain. the device has indicator light, which can show the operating status of the equipment. the device is widely used in electric power, military, maritime, railway, mining, oilfield, government, group companies, etc and get good feedbacks from clients.

Features

* 1channel fiber optic and 1channel E1, 1+1 back up protection

* 1-30 service interfaces,1 port Ethernet,1 module corresponding to 1 channel user interface, customize requirements

* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/ V.21/V.22/V.23/V.34/V.35/CAN/ADS-B radar/VHF/Synchronous radar data/Meteorological self-contained data/Transfer data/Weather radar data/Blind drop data etc.

* flexible configuration and expansion

* supports the real-time monitoring function of the working status of central office device's and the remote device's built-in power supply, and also supports the real-time monitoring function of the external Emerson switching power supply working state.

* support centralized monitoring system,optional network management function, monitor network configuration information,fiber and E1 link status, fiber and E1 protection status, user interface status, etc.

* AC220V/DC-48V/AC220V+DC-48V/built in dual power

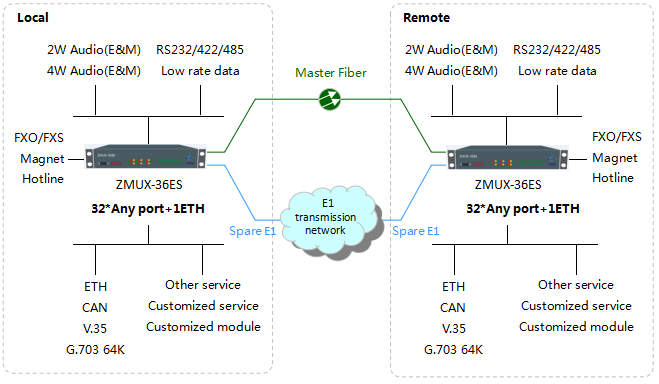

Network Diagram



ZMUX-3036ES is self-R&D producted by Yinxun, and we have exported a lot to overseas. It is very stable and reliable, international standard. We support ODM, OEM, technical cooperation
