Product Overview

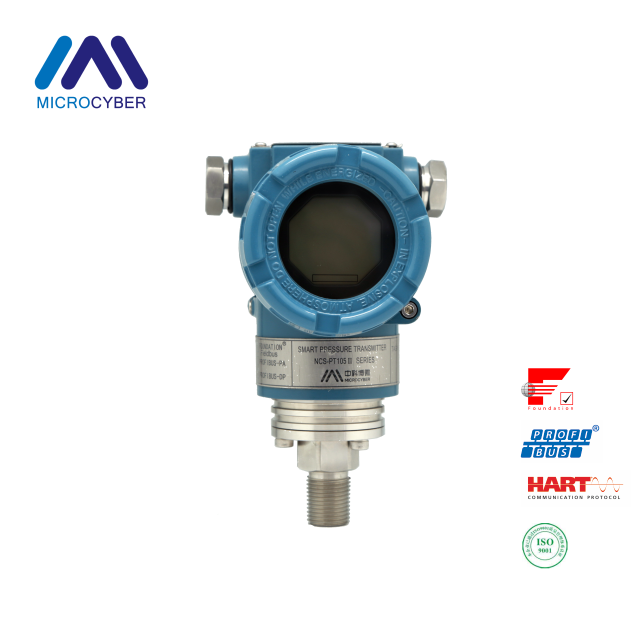

NCS-PT105IIS series Smart Pressure Transmitter with advanced, mature, reliable Piezoresistive Silicon Sensors has been designed meticulously by combining advanced microprocessor technology and digital capacitance measurement techniques. Its LCD can display many physical parameters such as pressure, temperature, current. It can be realized zero adjustment, range settings and other features by key-press operation, and easy to on-site tests.

NCS-PT105IIS  series Smart Pressure Transmitter supports HART, FF H1, Profibus PA, Profibus DP protocol and can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.



Features

Excellent performance

Performance up to 0.075% of accuracy

Gauge pressure, absolute pressure

Flexibility

Automatically environmental temperature compensation

Parameters can be set by magnetic sticks, communicator, HOST software

Reliability

Measurement media: liquid, gas and stream

HART, FOUNDATION? Fieldbus, PROFIBUS

up to ±0.1% of Upper Range Limit (URL) for 1 year
