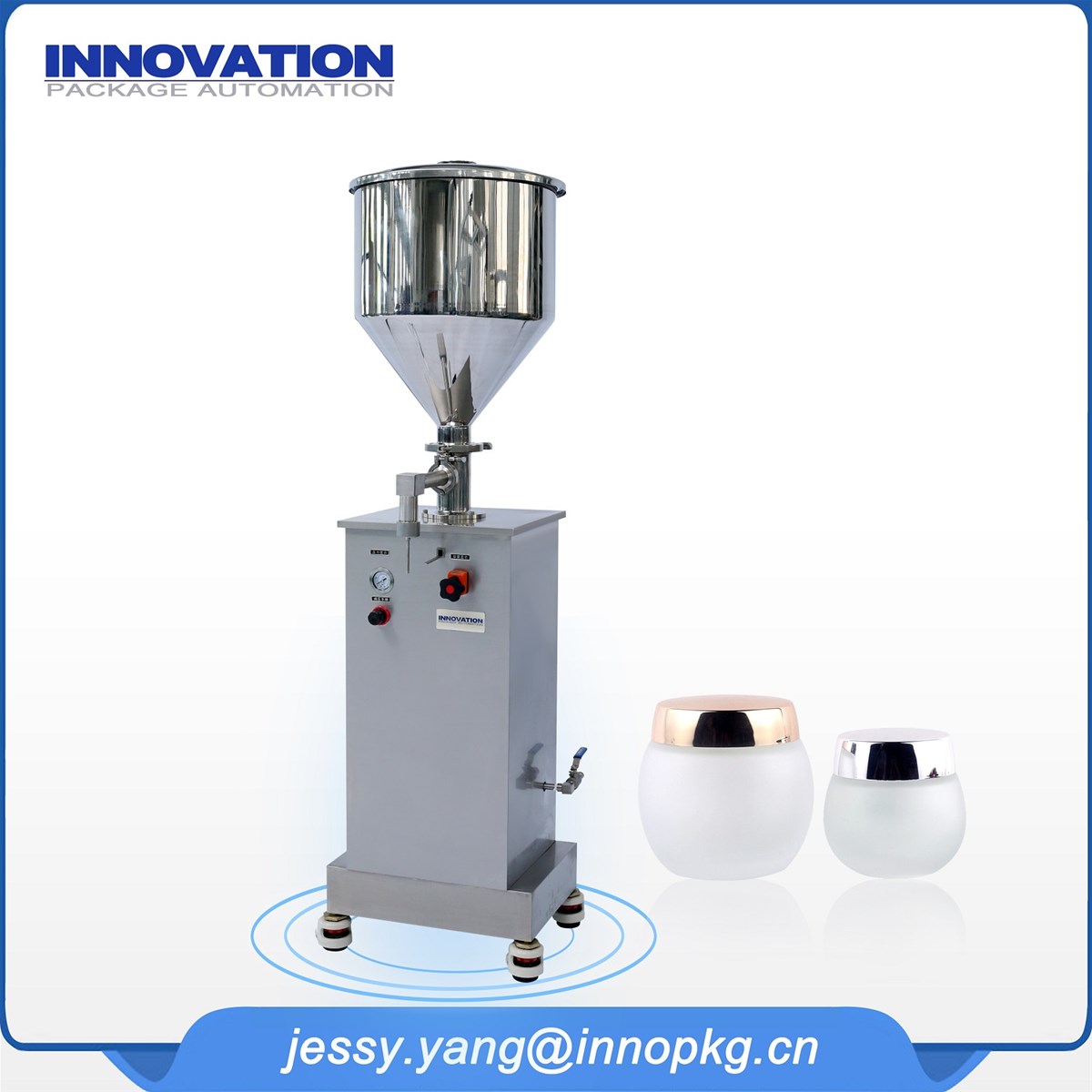

Overview:

     this product is suitable for filling liquid or Semi-fluid products in the daily chemicals industry. Food, pharmaceutical and Other industries can also use this product for filling operations.
       this product has formed a mass production, Designed and manufactured according to the requirements of Shanghai Enterprise Standard Q/NBBC1-2000, with stable quality and high service life.



Features:



1.      Apply to fill liquid, toner, cream, lotion, Shampoo, detergent and other materials

2.      Main Frame and cover material: SUS304, Product contact surface material: SUS316L

3.      Adopts Pneumatic control for easier operation

4.      Precise Filling volume, and convenient to adjust the filling volume

5.      Manual or pedal switch is optional

6.      with Handrail and forma wheels to move or fix easily



Main Parameter:

Model	VSF-3	VSF-7	VSF-15	VSF-20	VSF-50
Minimum Filling Volume	5ml	15ml	30ml	40ml	100ml
Maximum Filling Volume	30ml	70ml	150ml	200ml	500ml
Accuracy	±0.2ml	±0.5ml	±0.5ml	±0.5ml	±2ml
Air Pressure	0.4-0.6Mpa
Air Consumption	0.05m3/min
Dimension	490mm(L)*486mm(w)*1580mm(H)
