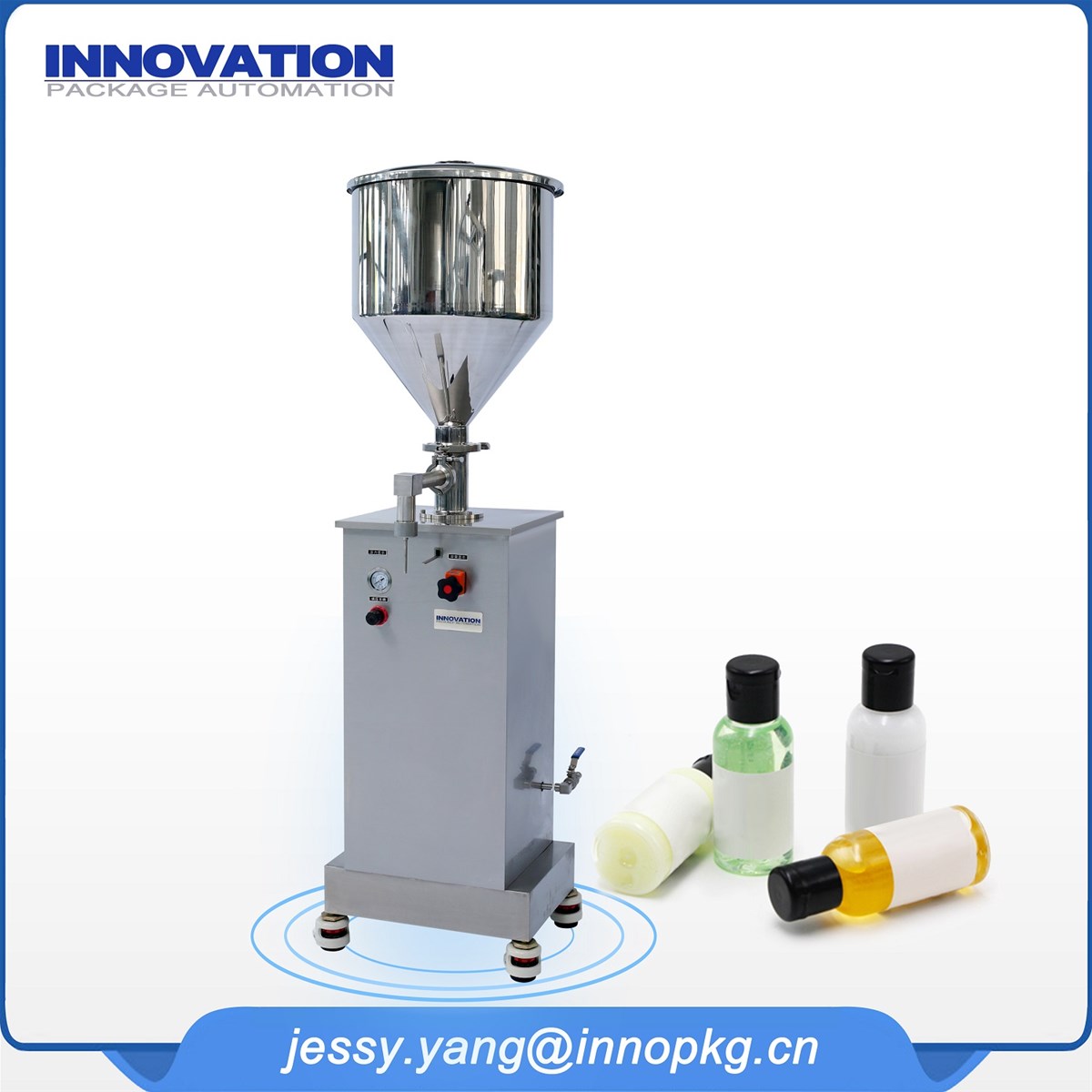

Overview:

     this product is suitable for filling liquid or Semi-fluid products in the daily chemicals industry. Food, pharmaceutical and Other industries can also use this product for filling operations.
       this product has formed a mass production, Designed and manufactured according to the requirements of Shanghai Enterprise Standard Q/NBBC1-2000, with stable quality and high service life.



Features:



L  Apply to fill liquid, toner, cream, lotion, Shampoo, detergent and other materials

L  Main Frame and cover material: SUS304, Product contact surface material: SUS316L

L   Adopts pneumatic control for easier operation

L   Precise filling volume, and convenient to adjust the filling Volume

L   Manual or pedal switch is optional

L   with handrail and forma wheels to move or fix easily



Main Parameter:

Model	VSF-3	VSF-7	VSF-15	VSF-20	VSF-50
Minimum Filling Volume	5ml	15ml	30ml	40ml	100ml
Maximum Filling Volume	30ml	70ml	150ml	200ml	500ml
Accuracy	±0.2ml	±0.5ml	±0.5ml	±0.5ml	±2ml
Air Pressure	0.4-0.6Mpa
Air Consumption	0.05m3/min
Dimension	490mm(L)*486mm(w)*1580mm(H)
