| Application: | Refrigeration Parts |
|---|---|
| Type: | Refrigeration Compressor |
| Brand Name: | RIGID |
| Voltage: | 24V DC |
| Model Number: | QX1902VDL |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

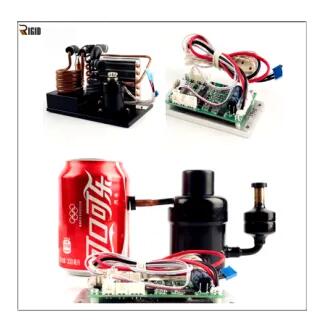

R134a Hermetic Rotary Small DC Inverter Compressor for Portable Refrigeration System
| Technical Data | |
| Compressor Model | QX1902VDL |
| Refrigerant | R-134a |
| Cooling Capacity | 100W~500W Adjustable |
| Compressor | Brushless Inverter Compressor |
| Coolant Temperature | 0°C to 50°C (32°F to 122°F) |
| Maximum Power Draw | 500 Watts |
| Voltage | 24V DC |
| Motor Type | Variable Speed Motor |
| Noise | <40 dBA |
| Net Weight | 1.6 lbs / 0.72kgs |
| Dimensions ( L x W x H ) | 57 x 78 mm ( 2.2 x 3.07 in ) |
| Orientation | Must operate within 30° of flat |
| Operating Ambient Temperature | 0°C to 50°C (32°F to 122°F) |
| Applications | Cooling and Refrigeration |
ELECTRIC INVERTER COMPRESSORS
the FUTURE of THERMAL CONTROL of MOBILE REFRIGERATION
the RIGID R134a DC variable speed hermetic compressor, with rotary speed at 1500rpm ~ 6500rpm adjustable, is suitable for the cooling device with a Power of 12V, 24V or 48VDC power supply, Evaporating Temperature at -35 Degree ~ 10 degree, especially for using in a mobile refrigeration Systems.
Features:
RIGID R134A Electric DC Compressor provides several benefits:
1) the first & proffessional Electric miniature compressor manufacturer in China;
2) Stationary or Portable Available;
3) Minimize weight & footprint & noise;
4) Ultra small size while powerful cooling capacity for precise thermal control;
5) under-Voltage and over-Voltage protection, motor over-current and phase lack protection.
Applications:
RIGID Miniature compressor's tiny size and light weight make them ideally Suited for mobile or portable small applications, including:
Water Chiller
Vaccine Fridges
RV Refrigerators
Beverage Cooling
Portable Cooling Systems
Electronics Cooling Systems
Medical Imaging Equipment
Mini-Chilled Water Systems
Miniature Refrigeration/Aircon Systems
